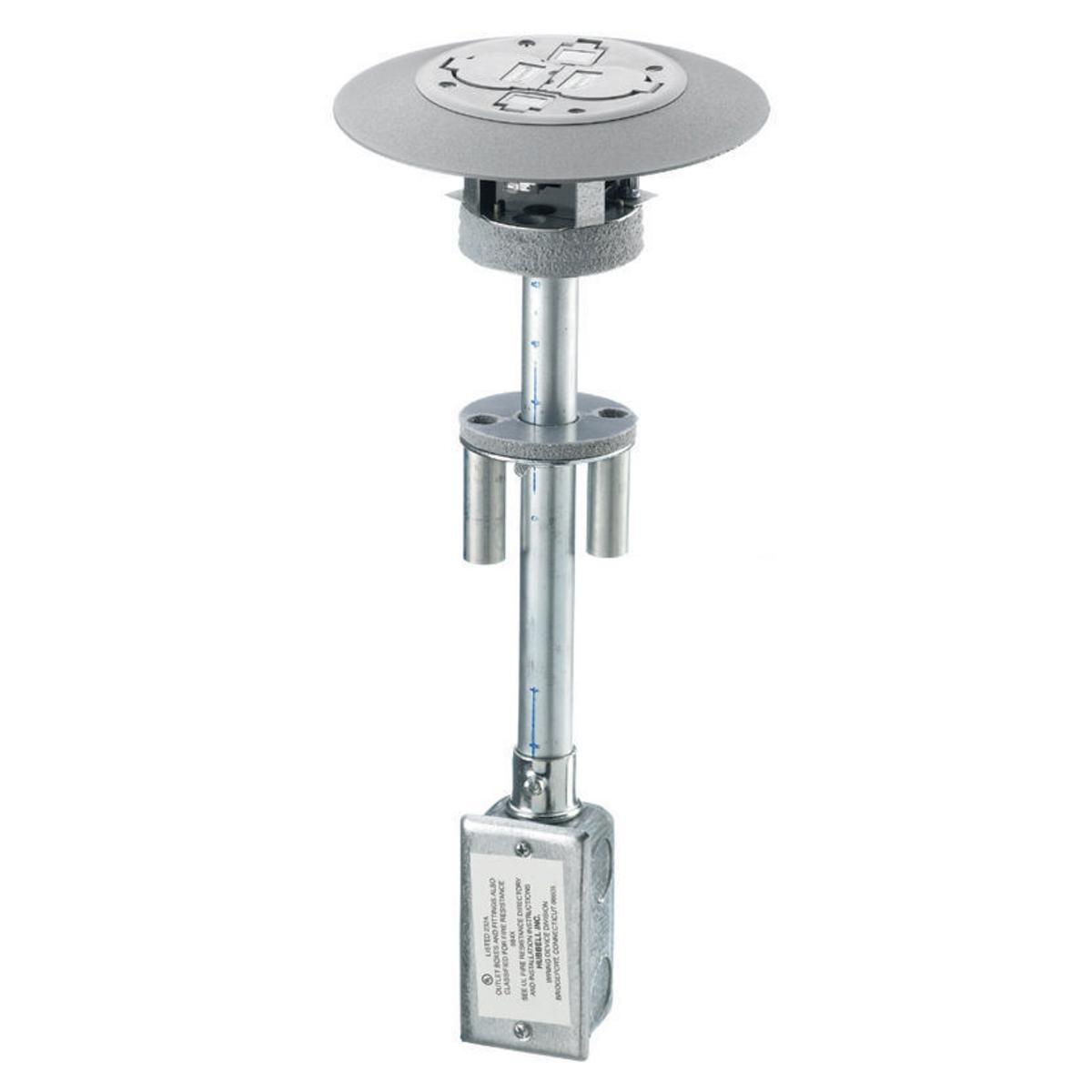

Hubbell Wiring Device-Kellems PT2X2IGGY 2X2 Fire-Rated Flush Isolated Ground Standard Poke-Through Complete Unit, 3 in Hole, 7 in Dia x 0.58 in THK Cover, Composite
Sku #78358553189
MFG #PT2X2IGGY
Attributes
| Type: | 1-Piece Fire-Rated Flush Isolated Ground Standard |
| Hole Size: | 3 in |
| Device Type: | 125 VAC 20 A Duplex Receptacle/Fire Rated |
| Series: | 2X2 |
| Knockout Size: | 3/4 in |
| Length: | 16.67 in |
- (8) 3/4 in knockouts in junction box
- For use in 1, 1 1/2, 2, 3 or 4 hr rated unprotected reinforced concrete floors or in 1, 2 or 3 hr rated floors employing steel floor units and concrete topping fire rating
- Painted cast aluminum/solid brass, brushed and lacquered carpet flange material
- 12 AWG THHN stranded copper
- (1) 3/4 in EMT for power, (2) 1/2 in EMT for low voltage
- Fabricated construction
- Cable access door cable entry
- (2) Installed Cat 6 Hubbell Xcelerator Jacks
- In-Floor Delivery System, Concrete Floors, Deliver Power, Voice/Data Cabling to Feed Furniture System Applications
- Pre-Wired 20 A 125 VAC Style Line® Decorator Duplex Receptacle, (2) Cat 5e Data Jacks, Non-Metallic Cover, Painted or Brushed Aluminum Flange
- Scrub Water Compliant|UL 514A File No. E31999|UL R8429|cULus Listed|ULC Listed
- Limited
