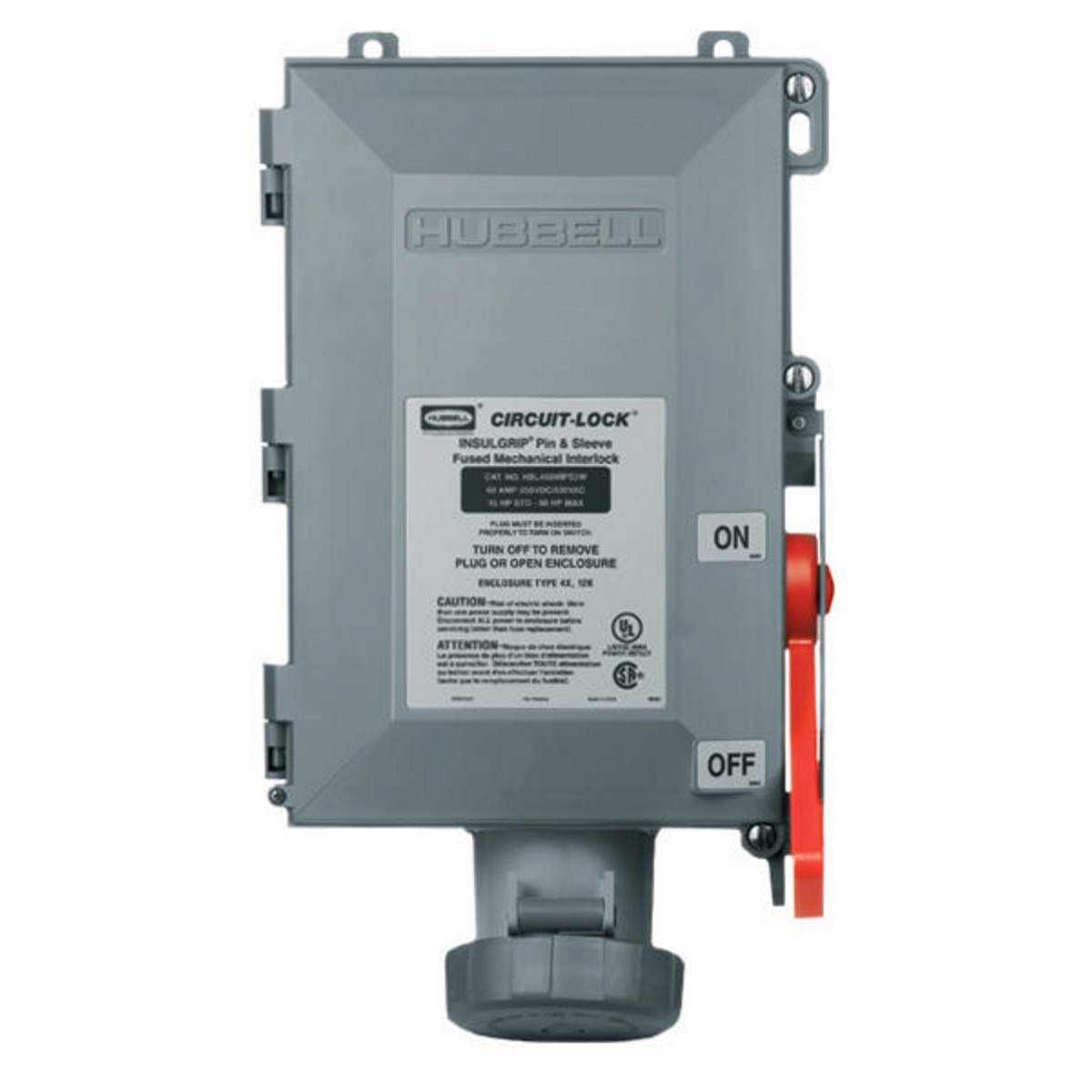

Hubbell Wiring Device-Kellems HBL® Circuit-Lock® HBL460MIF5WS 3-Phase Female Grounding Industrial Grade Fused Standard Pressure Screw Terminal Watertight Pin and Sleeve Mechanical Interlock, 600 VAC, 60 A, 3 Poles, 4 Wires
Sku #78358551493
MFG #HBL460MIF5WS
Attributes
| Type: | 3-Phase Female Grounding Industrial Grade Fused Standard Pressure Screw Terminal Watertight |
| Amperage Rating: | 60 A |
| Number of Poles: | 3 |
| Voltage Rating: | 600 V AC |
| Power Rating: | 36000 W |
| Number of Wires: | 4 |
- Enclosure is molded of rugged thermoplastic PBT to resist abuse, corrosion and enhance safety
- Stainless steel 1/4 turn door fasteners for quick, easy access to fuses
- High visibility red handle can be locked in the OFF position as a method of compliance with OSHA lockout requirements
- Accepts up to a 5/16 in padlock shackle
- Replaceable spring loaded receptacle lift cover with gasket ensures dust tight rating, lift cover provides watertight seal when turned and locked
- Removable door for ease of wiring and installation
- Compact fused disconnect switch accepts class ''J'' fuses
- Fuse holders are top mounted for easy access
- The switch accepts auxiliary contacts for control circuit applications including the ON/OFF control of remote pilot lights or signal for programmable controllers
- Thermoset polyester contact carrier provides resistance to electrical tracking and withstands higher temperatures
- Thermoset properties provide excellent dimensional stability, low moisture absorption and superior dielectric strength
- Three molded in conduit drill points are located on the top, bottom and back surface of enclosure
- Conduit hub and adjustable mounting feet (4) are ductile to allow mounting on irregular surfaces
- High Ampacity Watertight Connection Applications
- CSA Certified|IEC 309-1/309-2|UL 498
