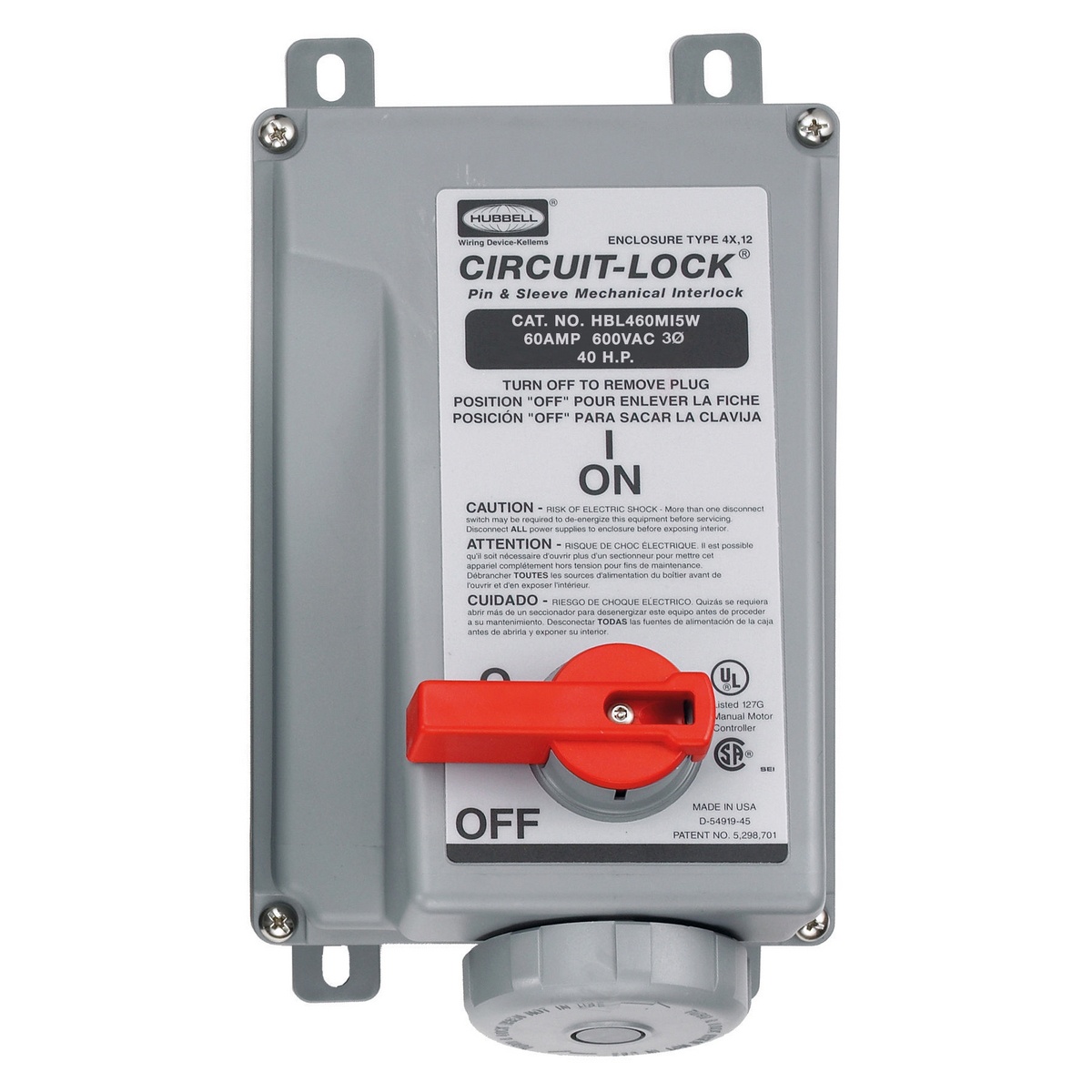

Hubbell Wiring Device-Kellems Circuit-Lock® HBL® HBL460MI5WS Female Grounding Industrial Grade Unfused Mechanical Interlock With Pin Mod, 480 VAC, 60 A, 3 Poles, 4 Wires
Sku #78358551492
MFG #HBL460MI5WS
Attributes
| Type: | Female Grounding Industrial Grade Unfused |
| Amperage Rating: | 60 A |
| Number of Poles: | 3 |
| Voltage Rating: | 480 V AC |
| Power Rating: | 28800 W |
| Number of Wires: | 4 |
- Insulated non-metallic housing, super tough, non-conductive and chemical resistant for heavy duty industrial environment
- IEC pin and sleeve devices are color coded by voltage for easy identification
- Self-closing gasketed cover, detents into position to fully close automatically
- Lockable handle to meet OSHA lockout tagout regulations
- 2-stage interlocking mechanism to help defeat tampering
- Watertight conduit hub and grounding plate for use on metallic conduit
- Color coded rating pad and receptacle mount to signify voltage
- Large gears enclosed in a gear box assembled on one plane to eliminate possible gear jumping
- Horsepower rated disconnect switch handles large motor loads
- DIN rail mounted switch for easy installation and replacement
- Replaceable spring loaded lift cover with neoprene gasket for a watertight seal
- Reverse service has dependable solid brass pins for longer life and reliable electrical contact
- Comes with brass inserts and stainless steel screws for higher torque and better sealing
- (3) molded-in conduit drill points are located on the top, bottom and back surface of enclosure
- Adjustable mounting feet are ductile to allow mounting on irregular surfaces
- CSA Certified|IEC 309-1|IEC 309-2|UL 498
