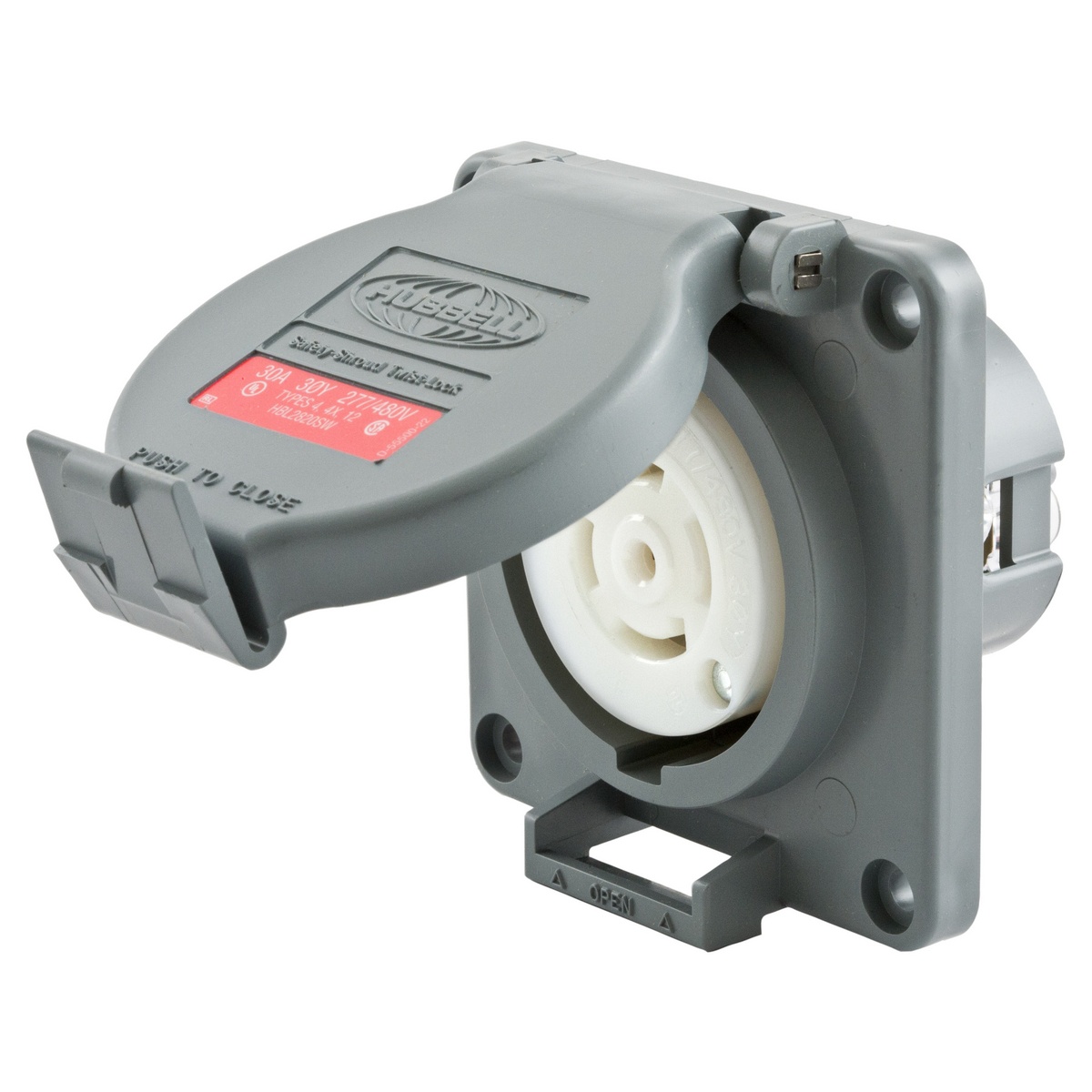

Hubbell Wiring Device-Kellems Safety-Shroud® Twist-Lock® HBL2820SW 3-Phase Heavy Duty Flanged Grounding Standard Single Watertight Screw Mount Locking Receptacle, 277Y/480 V AC, 30 A, 4 Poles, 5 Wires, Gray/White
Sku #78358545496
MFG #HBL2820SW
Attributes
| Type: | 3-Phase Heavy Duty Flanged Grounding Standard Single Watertight Screw Mount |
| Amperage Rating: | 30 A |
| Number of Poles: | 4 |
| Voltage Rating: | 277Y/480 V AC |
| Horsepower: | 10 hp |
| Number of Wires: | 5 |
- Environmental seal while in use and when closed
- High impact, thermoplastic housing for heavy-duty industrial environments
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
- CSA C22.2 No. 42, 0.17|NEMA WD1/WD5|UL 498|Federal Specification W-C-596|UL94 V-2 Flammability Rating
Hubbell Wiring Device-KellemsHubbell Wiring Device-Kellems Safety-Shroud® Twist-Lock® HBL2820SW 3-Phase Heavy Duty Flanged Grounding Standard Single Watertight Screw Mount Locking Receptacle, 277Y/480 V AC, 30 A, 4 Poles, 5 Wires, Gray/White
