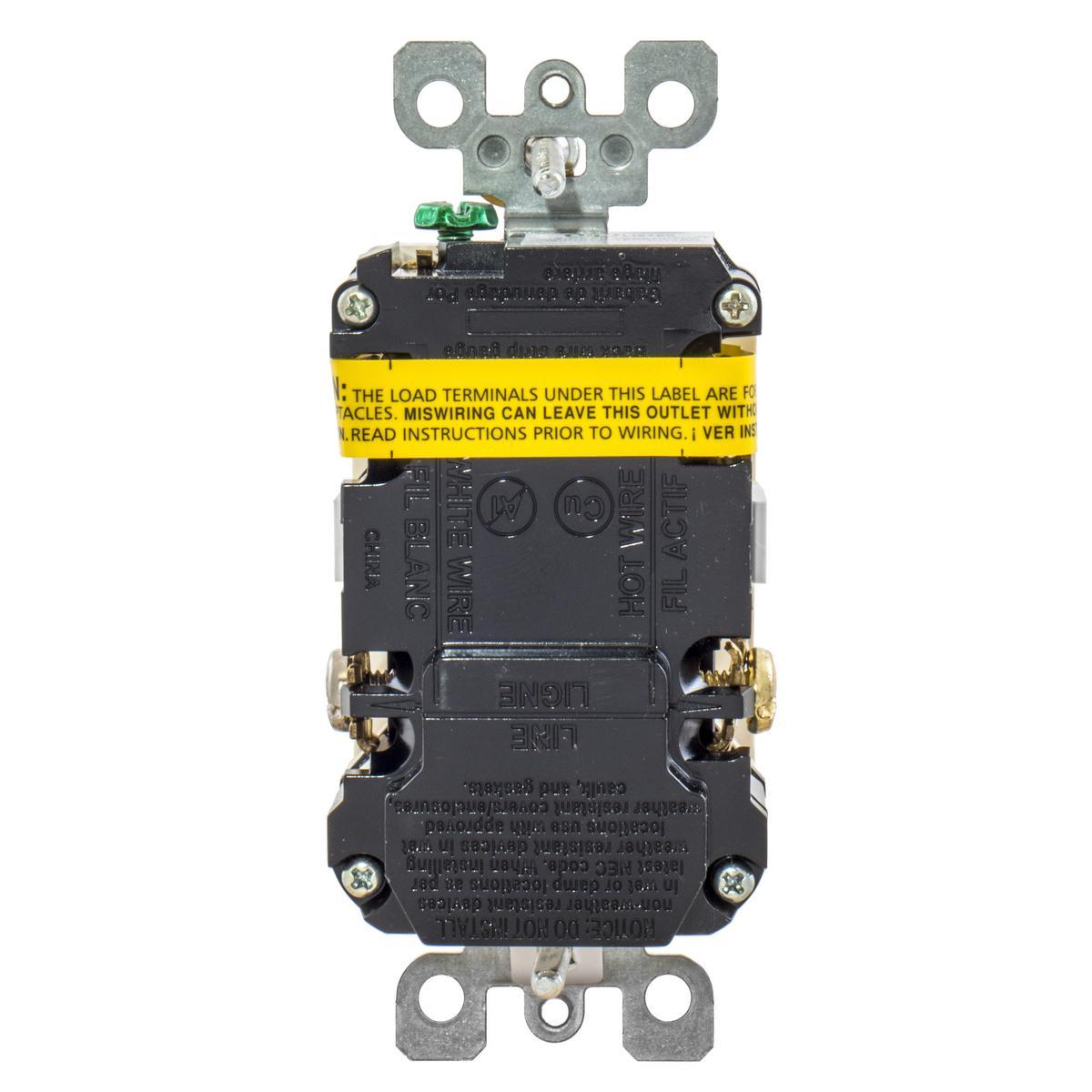

Hubbell Wiring Device-Kellems AFR20TRW Decorator Duplex Standard Tamper Resistant Screw Mount Arc Fault Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Sku #78358542616
MFG #AFR20TRW
Attributes
| Type: | 1-Phase Decorator Duplex Standard Tamper Resistant Screw Mount |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Number of Wires: | 3 |
- CSA C22.2 No. 42|Federal Specification WC596|NEMA WD6|NEC 406.12/210.52|UL 1699A|UL 498 File No. E366570
- Commercial, Industrial and Residential Applications
- Meets new 2017 national electric code for AFCI protection
- Meets or exceeds UL requirements for tripping time on series and parallel arcs
- Tamper resistant and self-grounding construction are standard features
- Automatically tests the AFCI each time the reset button is pressed in place
- No reset when tested if AFCI functionality is compromised
- 20 A protection feed-through
- Indoor dry unless protected by additional mean environmental conditions
- Straight blade receptacle
- 2500 W power rating
- https://youtu.be/_gRwAmAYiQ8
