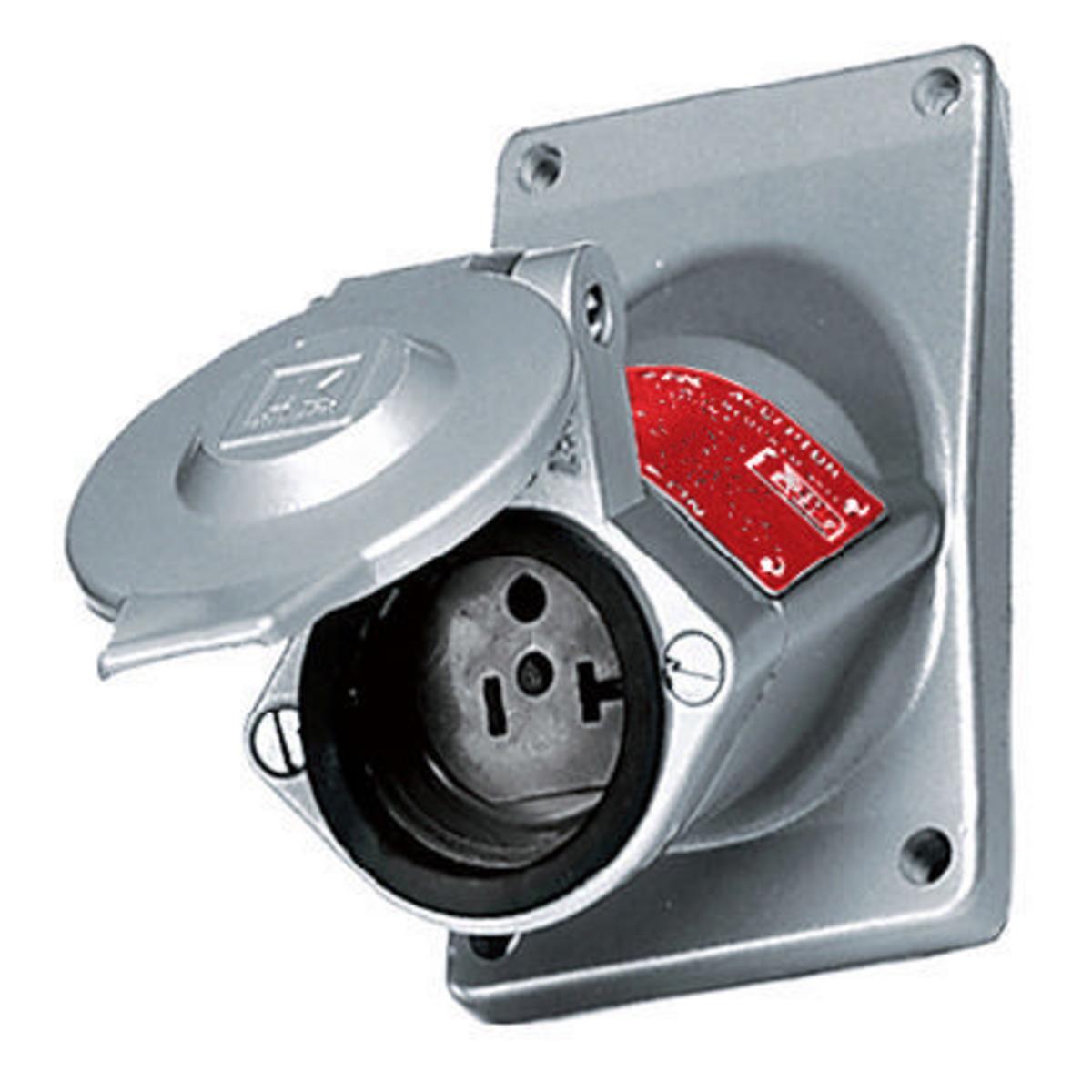

Hubbell Wiring Device-Kellems UGRA20231 1-Phase Extra Heavy Duty Non-Grounding Standard Screw Mount Explosionproof Straight Blade Receptacle, 125 V AC, 20 A, 3 Poles, 3 Wires, Metallic
Sku #78358541260
MFG #UGRA20231
Attributes
| Type: | 1-Phase Extra Heavy Duty Non-Grounding Standard Screw Mount |
| Amperage Rating: | 20 A |
| Number of Poles: | 3 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Number of Wires: | 3 |
- Traditional face shape
- Class 2, groups F,G enhancement
- #8-32 brass/nickel plated for neutral terminal screw
- #8-32 brass, multiple drive green ground screw
- Phenolic base and top
- 0.037 in brass nickel plated power contact
- 0.05 in brass mounting strap
- Withstands 2000 VAC minimum dielectric voltage
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
- Terminals identified in accordance with UL498 (brass, white, green)
- 14 to 10 AWG copper stranded or solid conductor only
- Ratings are a permanent part of the device
- Screw mount
- Explosionproof
- Screw terminal connection
- 2500 W wattage
- 14 to 12 AWG size
- Dry Location and Indoor Applications
- RoHS Compliant|UL 498|UL 499 File No. E2186|UL 94 V-2 Flammability Rating
