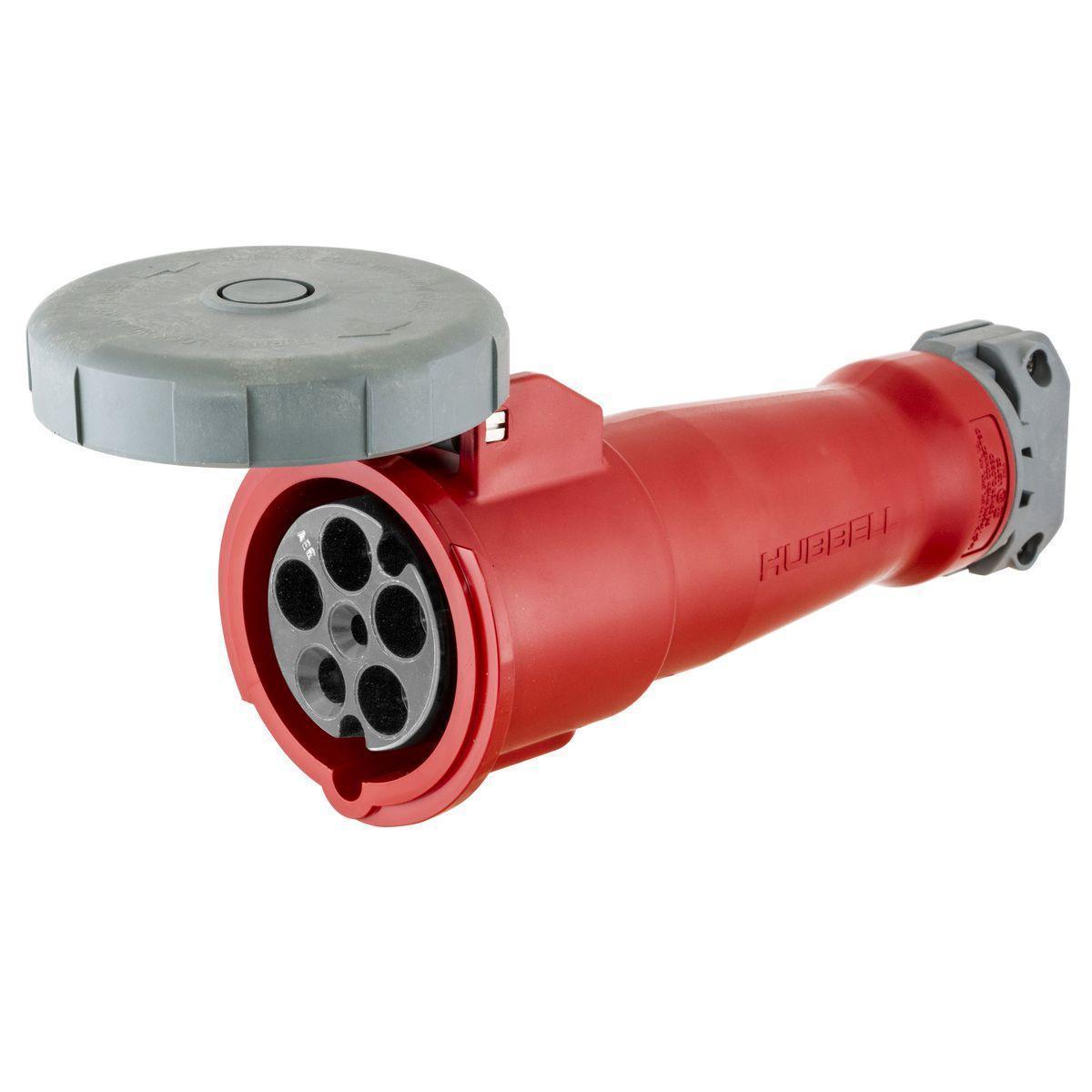

Hubbell Wiring Device-Kellems HBL530C7W 3-Phase 5-Wire Female Grounding Heavy Duty Insulated Non-NEMA Standard Watertight Cord Mount Pin and Sleeve Connector, 277/480Y V AC, 30 A, 4 Poles, 5 Wires, Red
Sku #78358540544
MFG #HBL530C7W
Attributes
| Type: | 3-Phase 5-Wire Female Grounding Heavy Duty Insulated Non-NEMA Standard Watertight Cord Mount |
| Amperage Rating: | 30 A |
| Number of Poles: | 4 |
| Voltage Rating: | 277/480Y V AC |
| Horsepower: | 7-1/2 hp |
| Number of Wires: | 5 |
- High Ampacity Connections Applications
- Sequential contact engagement to prevent a momentary over voltage on components
- Nickel plated brass cover screw/rivet
- Polycarbonate rotating sealing disc and brass ground/phase sleeve
- Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
- 300 series stainless steel terminal screws, 300 series stainless steel terminal screws assembly screws, stainless steel (17-1 type) arm spring
- Identification and ratings are a part of the external label and molded into the receptacle mount product identification
- Color coded housings by voltage for easy identification
- High impact thermoset contact carrier and retainer
- Corrosion-resistant self-closing gasketed cover
- Supertough® insulated non-metallic housing
- 0.6 to 1.45 in cord clamp range
- Watertight neoprene glad seal to prevent water ingress from entering at cable entrance
- CSA Certified|RoHS Compliant|UL 498 File No. E146033|CSA File No. LR280C|IEC 309-1/309-2/60309-1/60309-2
