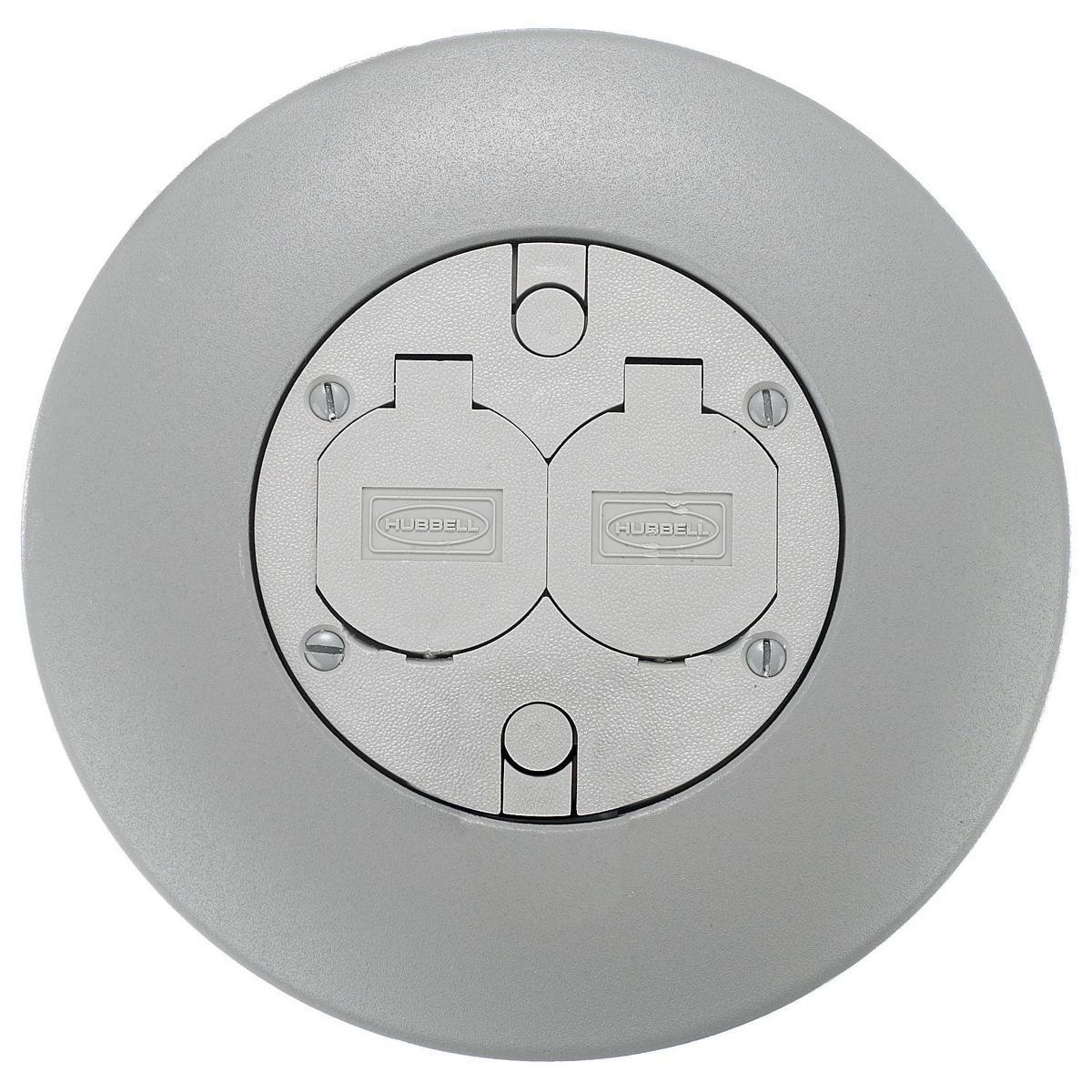

Hubbell Wiring Device-Kellems FRFGYA Standard Fire-Rated Poke-Through Flush Service Fitting, 7 in Dia, Aluminum
Sku #78358539604
MFG #FRFGYA
Attributes
| Type: | Standard Fire-Rated |
| Number of Knockouts: | 2 |
| Diameter: | 7 in |
| Number of Outlets: | 3 |
| Knockout Size: | 1/2 in |
| Thickness: | 0.51 in |
- Equipped with a cast aluminum carpet flange and a thermoplastic (ABS) duplex flap cover
- Minimum of 2 ft on centers and not more than one unit per 65 sq-ft floor area in each span spacing
- Painted cast aluminum/solid brass, brushed and lacquered carpet flange material
- For use in 1, 1-1/2, 2, 3 or 4 hr rated unprotected reinforced concrete floors or in 1, 2 or 3 hr rated floors employing steel floor units and concrete topping (D900 series design)
- Fabricated construction
- 2-1/4 in (over metal deck) to 7 in-floor thickness range
- Pre-Wired 20 A Duplex Receptacle, Non-metallic Flip Lid Cover With (2) 1/2 in Low Voltage Feed-through Holes, Painted Aluminum Flange
- UL 514A|cULus Listed|CSA Certified
- For fire rated poke-through and in-floor delivery systems
- Limited
