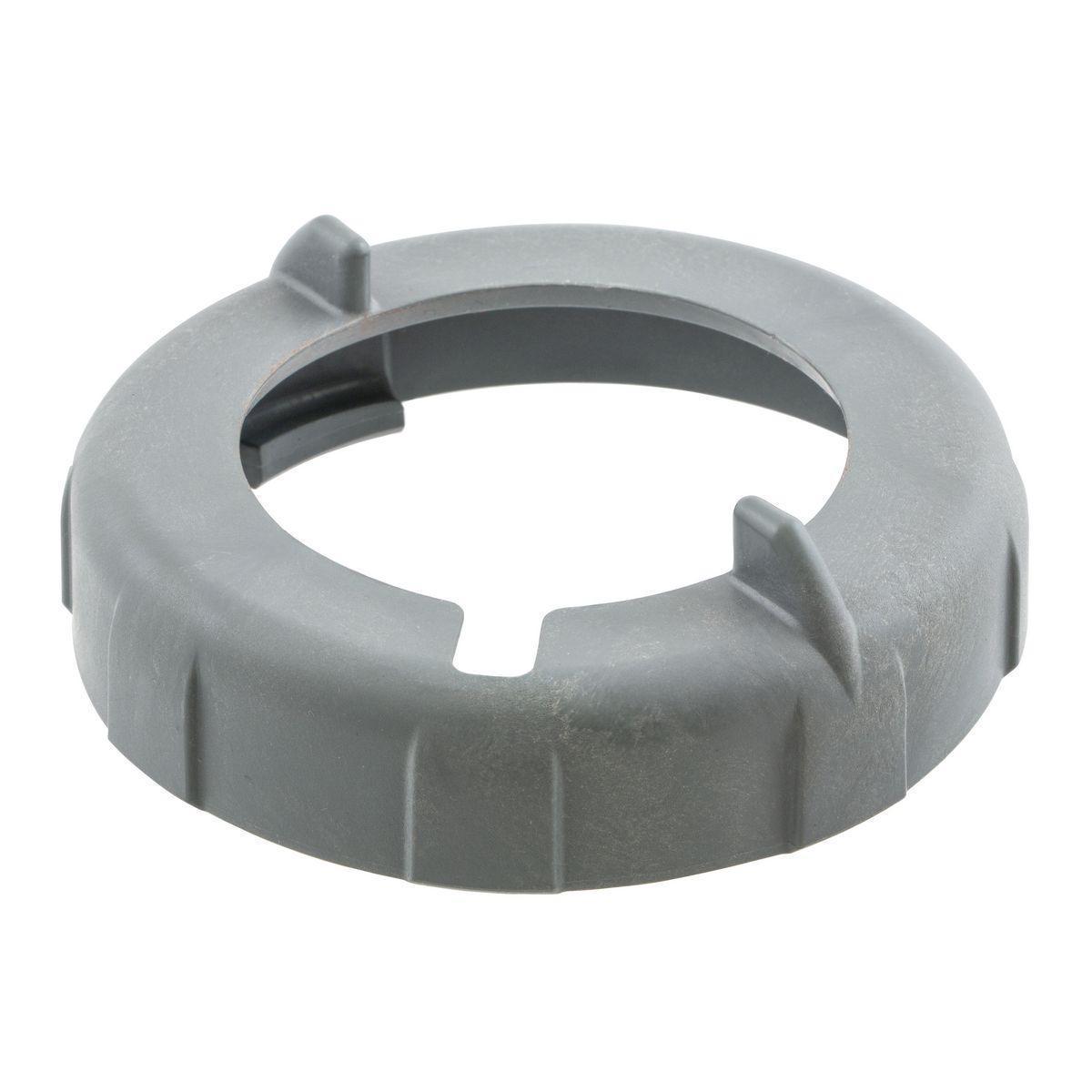

Hubbell Wiring Device-Kellems LR320 Replacement Locking Ring, For Use With 16 and 20 A, 3-Wire Plugs, Connectors and Inlets and IEC Devices, 600 V AC rms Max Working Voltage, Composite, Gray
Sku #78358537051
MFG #LR320
Attributes
| Type: | Heavy Duty Industrial Grade Non-Metallic Replacement Standard Watertight |
| Specifications: | 600 V AC rms Max Working Voltage |
| Color: | Gray |
| Suitable For Use With: | 16 and 20 A, 3-Wire Plugs, Connectors and Inlets and IEC Devices |
| Material: | Composite |
| Country of Origin: | US |
- Neoprene gasket
- Where an IEC configuration is required but water resistance is not necessary, low profile pin and sleeve can make the connection
- Withstand 3000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Suitable for use on a circuit capable of delivering not more than 10,000 rms symmetrical amperes at the voltage rating of the receptacle
- In accordance with UL 746C impact resistance
- IP67 ingress protection
- UL94-5VA and V-0 classification flammability
- -40 to 75 deg C continuous operating temperature
- All materials are UV stabilized
- UL Listed|RoHS Compliant|CSA/IEC Certified|UL94 V-0/5VA Flammability Rating
- Industrial Applications
