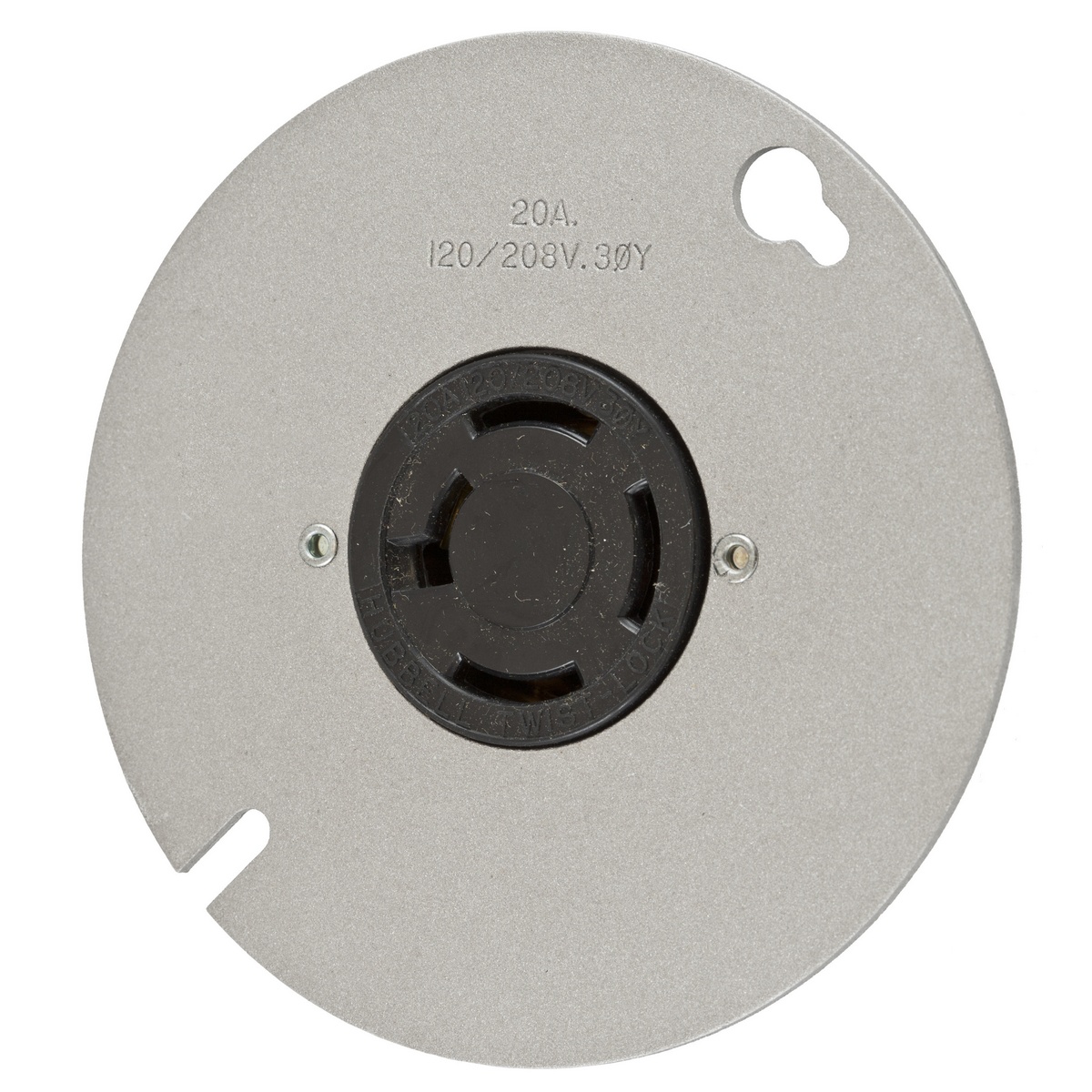

Hubbell Wiring Device-Kellems HBL7417B 3-Phase Heavy Duty Flush Non-Grounding Standard Single Screw Mount Locking Receptacle, 120Y/208 V AC, 20 A, 4 Poles, 4 Wires, Black
Sku #78358533370
MFG #HBL7417B
Attributes
| Type: | 3-Phase Heavy Duty Flush Non-Grounding Standard Single Screw Mount |
| Amperage Rating: | 20 A |
| Number of Wires: | 4 |
| Voltage Rating: | 120Y/208 V AC |
| Number of Poles: | 4 |
| Grade: | Industrial |
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- https://youtu.be/1DnPJu3QNw0
- Dry Locations and Indoor Applications
- RoHS Compliant|UL 498|CSA C22.2 No. 42/0.17|UL94 V-2 Flammability Rating|Federal Specification W-C-596
