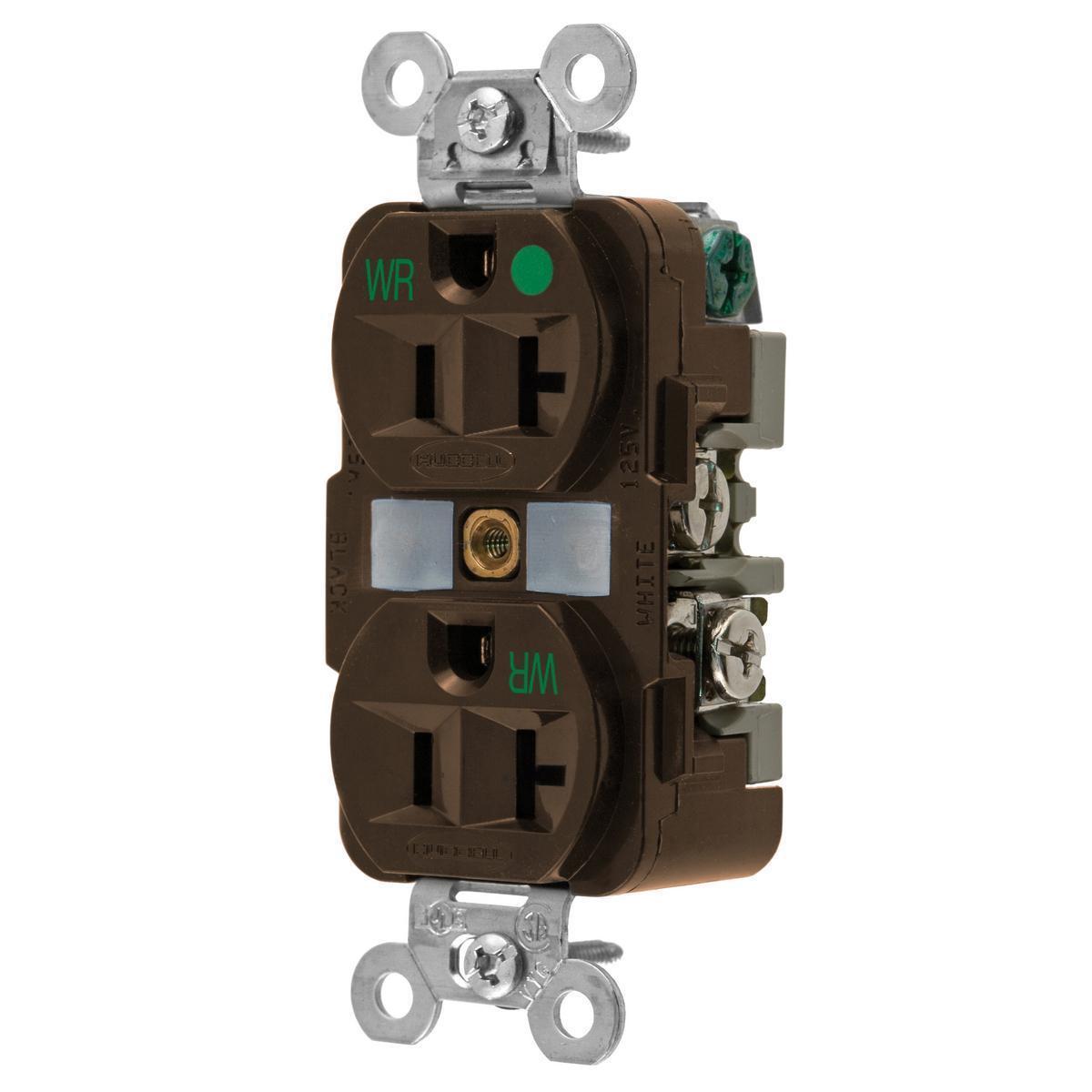

Hubbell Wiring Device-Kellems HBL® HBL8300WR 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Weather-Resistant Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Sku #78358532020
MFG #HBL8300WR
Attributes
| Type: | 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Weather-Resistant Screw Mount |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Number of Wires: | 3 |
- Reinforced thermoplastic base provides superior thermal, electrical and mechanical properties
- Providing contact stability, this high performance material will reduce heat buildup giving you long lasting performance
- Deep body design increases impact and chemical resistance
- Back wired ground terminal allows faster, easier installation
- One piece nickel plated brass integral ground strap for greater corrosion resistance
- Patented ground contact provides redundant grounding
- I.D. marking surface provides quick, sure circuit identification
- All hospital grade devices are marked with the green dot symbol, required by UL
- External wiring clamps allow for visual inspection of the terminals
- Unique strand containment feature on the terminal ''bundles'' the wire, ensuring 100% clamping of wire strands and reducing heat from the termination
- Exclusive bypass contacts are made of nickel plated brass alloy, increasing blade retention, insuring reliable uninterrupted flow of power
- Barbed assembly arms reduce possibility of face/base separation
- Square head, 10-thread bronze center rivet won't rotate, reduces stripping and resists corrosion
- CSA C22.2 No. 42 File No. 285|Federal Specification W-C-596|NEMA WD1/WD5/WD6|UL 498 File No. E2186
