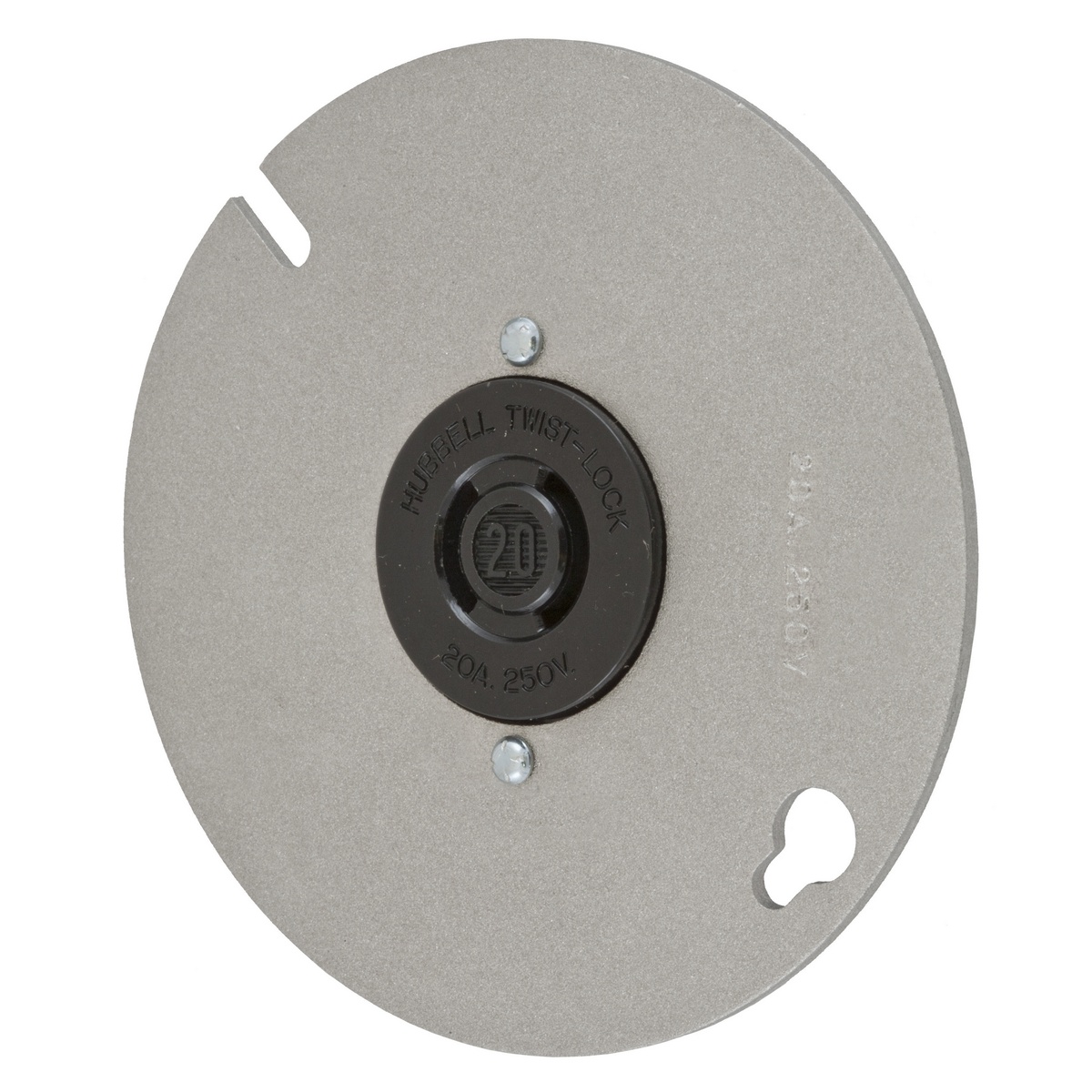

Hubbell Wiring Device-Kellems HBL7217B 1-Phase Heavy Duty Flush Non-Grounding Standard Single Screw Mount Locking Receptacle, 250 V AC, 20 A, 2 Poles, 2 Wires, Black
Sku #78358523711
MFG #HBL7217B
Attributes
| Type: | 1-Phase Heavy Duty Flush Non-Grounding Standard Single Screw Mount |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 250 V AC |
| Horsepower: | 2 hp |
| Number of Wires: | 2 |
- UL 498|UL94HB Flammability Rating|Federal Specification W-C-596|NEMA WD1/WD5|CSA C22.2 File No. 0.17
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Face color coding by voltage facilitates locating and mating of proper devices
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- https://youtu.be/1DnPJu3QNw0
- Dry Locations and Indoor Applications
