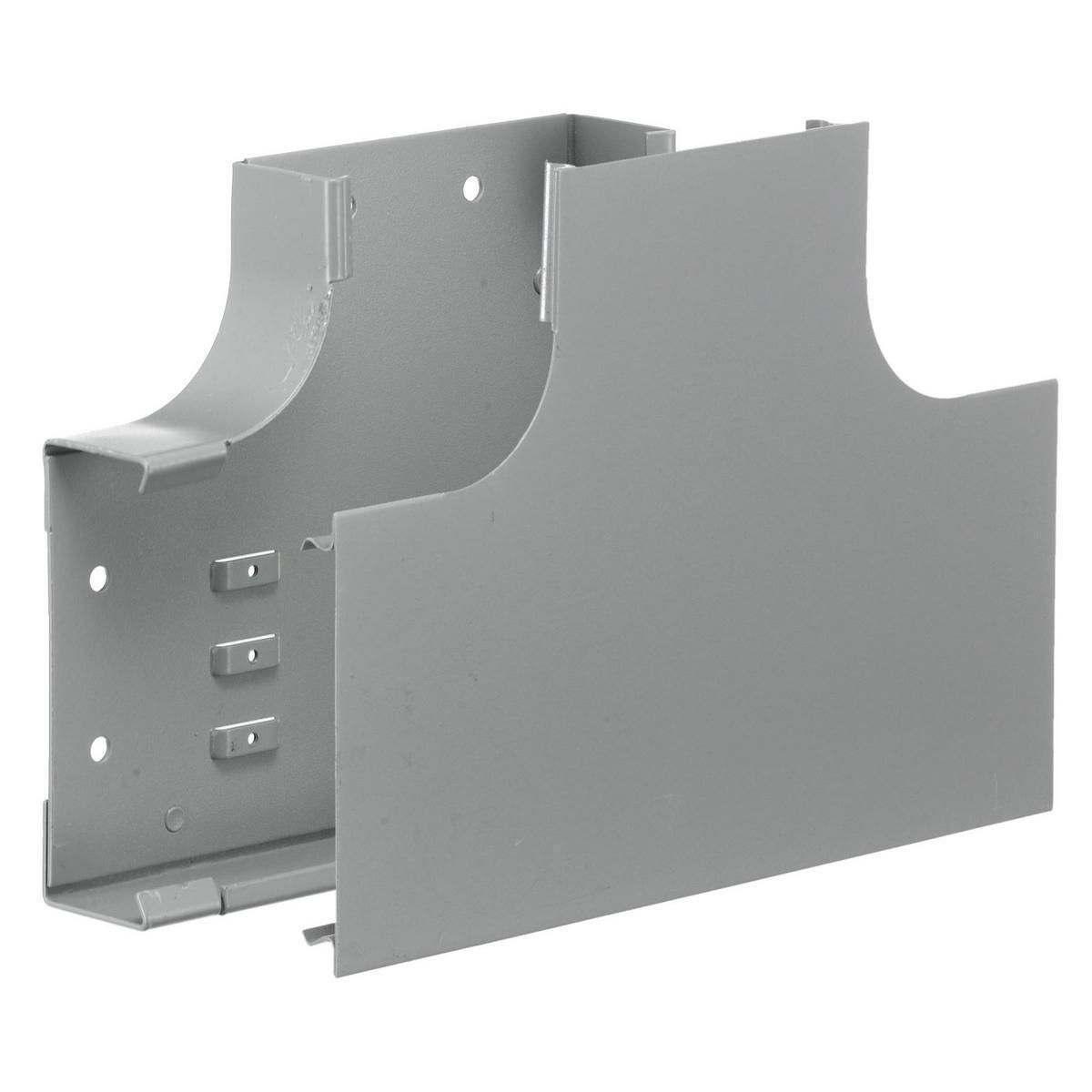

Hubbell Wiring Device-Kellems HBL4715GY Large Radius Standard Undivided Tee Fitting, 90 deg Bend, For Use With HBL4750 Series Metal Raceway, Roll Formed Steel, Gray
Sku #78358521581
MFG #HBL4715GY
Attributes
| Type: | Large Radius Standard Undivided |
| Suitable For Use With: | HBL4750 Series Metal Raceway |
| Color: | Gray |
| Bend Angle: | 90 deg |
| Material: | Roll Formed Steel |
| Dimensions: | 11.6 in L x 8.7 in W x 1.7 in H |
- RoHS Compliant|UL 5A File No. E118895/E119190|CSA C22.2 No. 62 File No. LR87514|TIA/EIA 569A
- For branches at right angles
- Without knockouts
- Provides flush finish with overlap feature to hide potential miscuts
- 1-1/4 in bend radius offers a fixed solution that does not have to be installed as an option
- Large cross sectional area provides for maximum cable capacity throughout entire system
- Flexible channel divider provides industry leading data capacity in the same profile with a 2/3-gang datacom split
- By-pass divider opening accepts GFCI or surge devices to be mounted in 70/30 divided channel
- Greater capacity offers more room for moves, adds and changes
- Raceway channel can also be used with no divider for maximum cable fill in single-service applications
- Uses HBL 3000 Series raceway and fitting and accessories to customize the install
- Scratch resistant finish
- Non-Hazardous Locations
