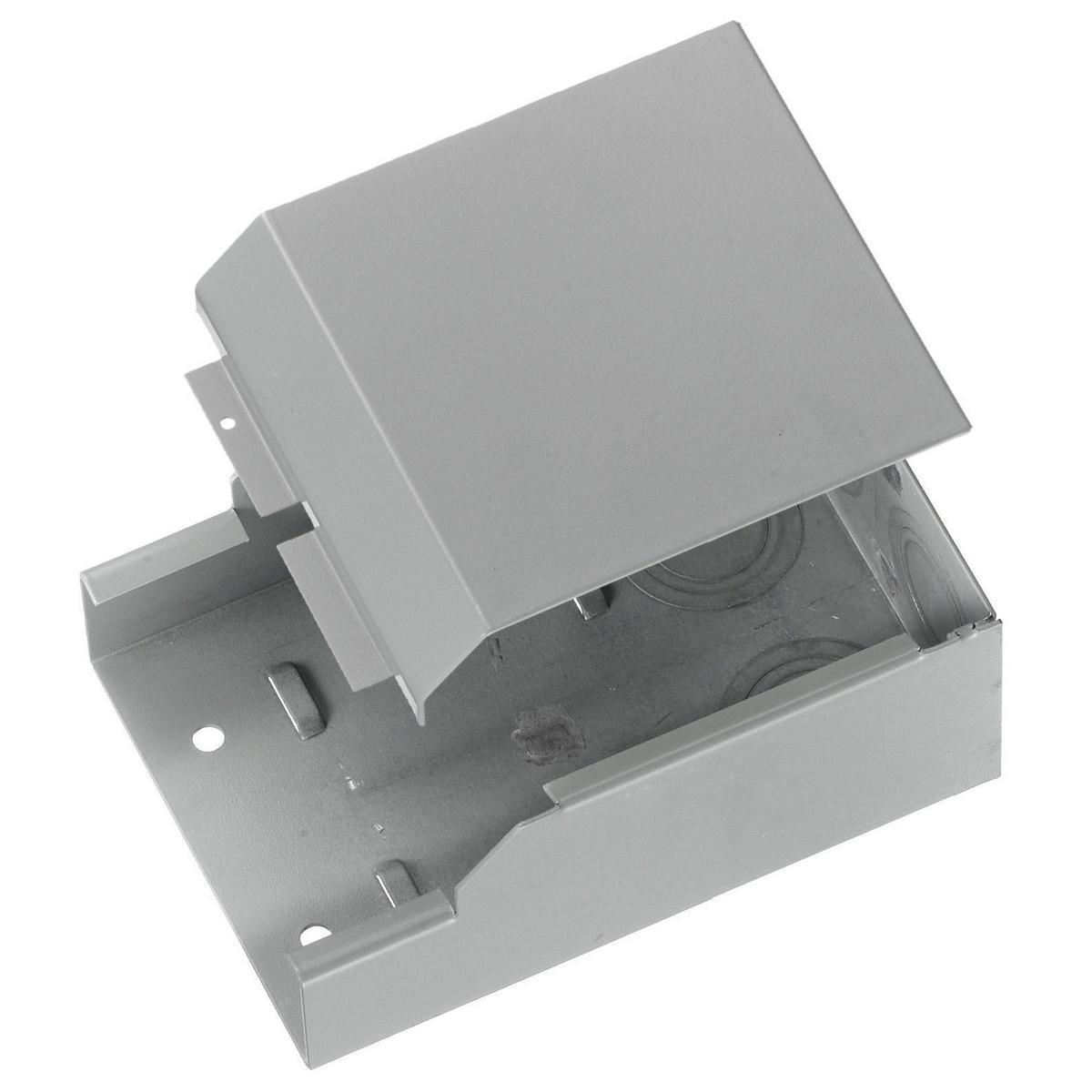

Hubbell Wiring Device-Kellems HBL4710GY HBL4750 Standard Undivided Entrance Fitting, For Use With HBL4750 Series Metal Raceway, Rolled Steel, Gray
Sku #78358521569
MFG #HBL4710GY
Attributes
| Type: | Standard Undivided |
| Suitable For Use With: | HBL4750 Series Metal Raceway |
| Color: | Gray |
| Series: | HBL4750 |
| Material: | Rolled Steel |
| Finish: | Painted |
- For connecting HBL4750 raceway with rigid or flexible conduit
- Greater capacity offers more room for moves, adds and changes
- Raceway channel can also be used with no divider for maximum cable fill in single service applications
- Cover plates help to conceal unsightly gaps caused by miscuts
- Pre-cut cover options allow for 12, 18, 24 and 36 in center mounting
- 1-1/4 in bend radius offers a fixed solution that does not have to be installed as an option
- Single service convertible to multi-service metal raceway application
- Concentric 3-gang/4 in, 1 in and 1-1/4 in CRFB size knockouts on back and end
- HBL4750 device bracket plate provides an excellent solution for power, data, voice, audio and video applications
- Device bracket plate for use with Hubbell® KP plates and Hubbell® iSTATION™ modules and bezels
- Provides flush finish with overlap feature to hide potential miscuts
- Extensive line available external, internal, flat, tee and entrance end fittings
- Large cross sectional area provides for maximum cable capacity throughout entire system
- Flexible channel divider provides industry leading data capacity in the same profile with a 2/3 gang Datacom split
- By-pass divider opening accepts GFCI or surge devices to be mounted in 70/30 divided channel
- Uses HBL 3000 Series raceway and fitting and accessories to customize the install
- Scratch resistant finish
- Non-Hazardous Locations
- HBL4751AC Couplings
- RoHS Compliant|CSA Certified|ANSI/TIA-569-B|CSA C22.2 No. 62 File No. LR87514|NEC Article 386|UL 5 File No. E253976/E253830/E253833
- Limited
