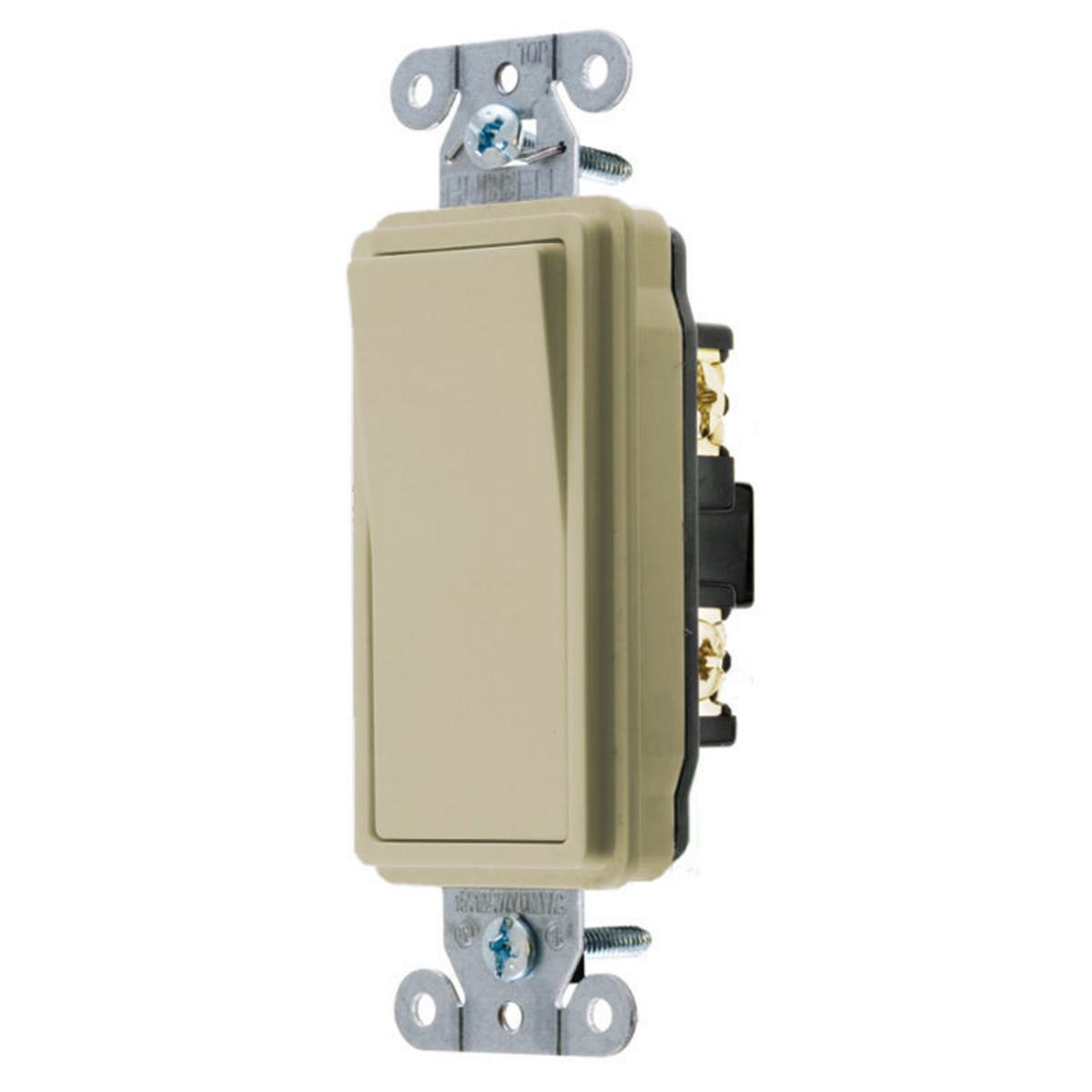

Hubbell Wiring Device-Kellems StyleLine® DS220I DS Series General Purpose Standard Specification Grade AC Decorator Switch, 120/277 V AC, 20 A, 5540 W Power Rating, 2-Position Contact
Sku #78358515134
MFG #DS220I
Attributes
| Type: | General Purpose Standard Specification Grade |
| Voltage Rating: | 120/277 V AC |
| Power Rating: | 5540 W |
| Series: | DS Series |
| Amperage Rating: | 20 A |
| Contact Configuration: | 2-Position |
- 14 to 10 AWG solid and stranded copper wire only
- NEMA WD1 rating
- Silver alloy contacts, brass terminal screw, nickel plated steel with auto ground staple, silver alloy contacts, brass (green) ground screw
- Thread cleaning captive mounting screw
- Minimum 4.8 times rated current for 100 cycles overload
- Withstands 1500 VAC minimum dielectric voltage
- Steel, zinc plated bridge is corrosion resistant
- Automatic self-grounding staple
- NEMA WD1|UL 20|CSA Certified|UL94 V-2 Flammability Rating
- Commercial Heavy Duty Applications
