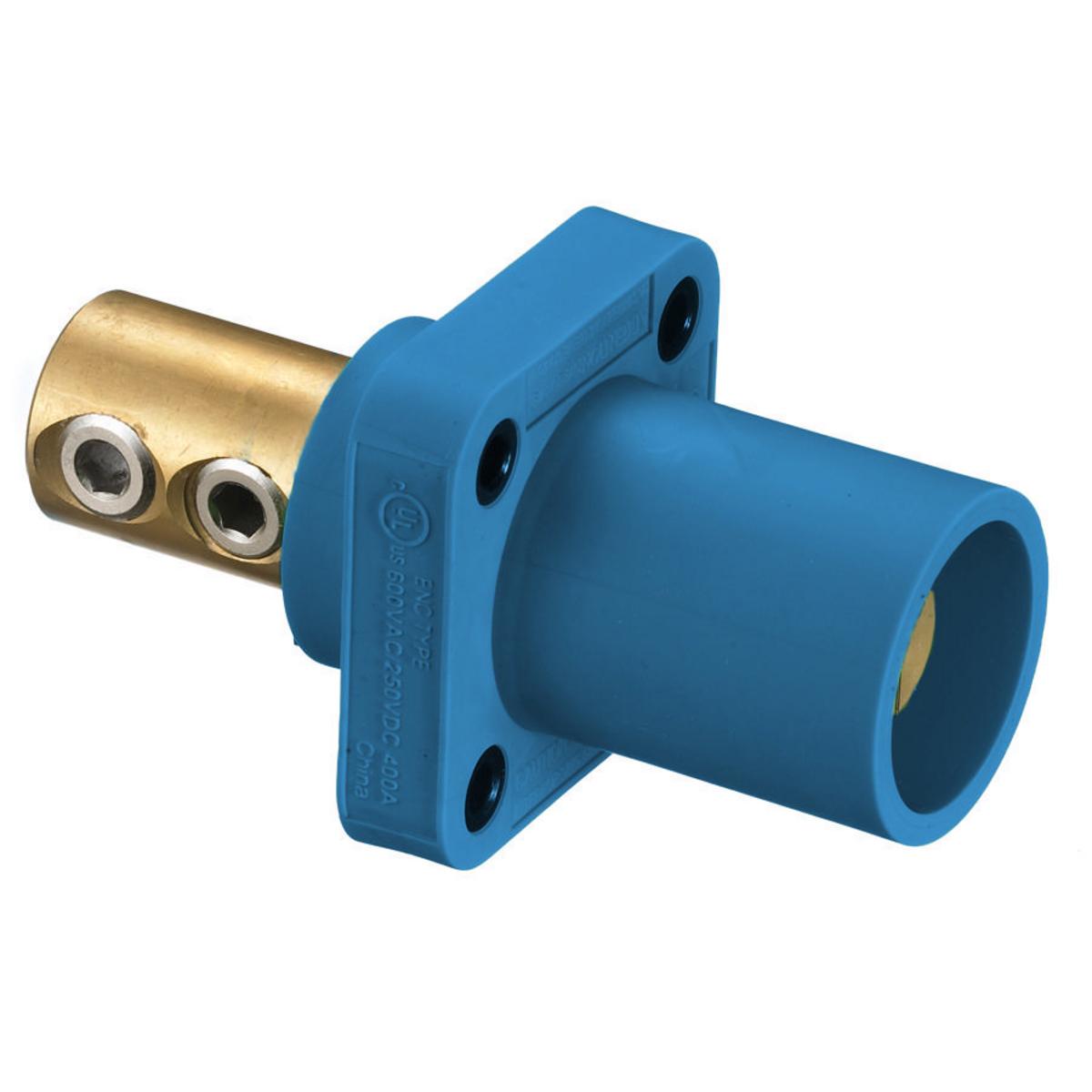

Hubbell Wiring Device-Kellems HBLMRBL 16 Series 1-Phase Male Heavy Duty Single Pole Receptacle, 600 V AC/250 V DC, 400 A, 4 to 4/0 AWG Wire, Screw Terminal Connection, 3R/4X/12K NEMA Rating
Sku #78358511294
MFG #HBLMRBL
Attributes
| Type: | 1-Phase Male Heavy Duty |
| Voltage Rating: | 600 V AC/250 V DC |
| Wire Size: | 4 to 4/0 AWG |
| Series: | 16 Series |
| Amperage Rating: | 400 A |
| Connection Type: | Screw Terminal |
- Strip gauge molded into every plug and receptacle housing, simplifies installation and saves time
- Lock symbol aids in the mating of devices and provides a clear indication that the devices are properly connected
- Special screw thread requires fewer turns than most competitors and reduces the risk of a conductive screw being substituted
- Industrial Grade
- Rounded corners reduce the possibility of catching or snagging on structures or equipment
- Provides high contact pressure and vibration resistant connection, which helps reduce operating temperatures and extends product life
- Recessed mounting screw minimizes screwdriver slippage
- Engineered body design makes installation simple with no need for additional tools and the non-metallic retaining screw helps to make operation safe for all involved
- Extra long non-conductive inner sleeve reduces force required to install housing over contacts, easier to rotate contact in body for installing retaining screw
- Non-conductive retaining screw locks contacts in place and allows for easy installation, prevents contact movement within housing
- With lock indicator symbol making mating clear and simple, devices can lock 180 deg to prevent unintended disconnects
- Easily identifiable cable cut-off points for secure fit allows you to easily customize and cut the housing to the required/correct cable size
- Insulgrip® style housing for superior gripping conforms to the user's hand making it easy to connect and disconnect, even with gloves on
- UL 498/1691|ANSI/NFPA 70 Specified|NEC Compliant|RoHS Compliant
- Theatre, Stage and Studio, Attachment Plugs and Receptacles and High Ampacity Connections
