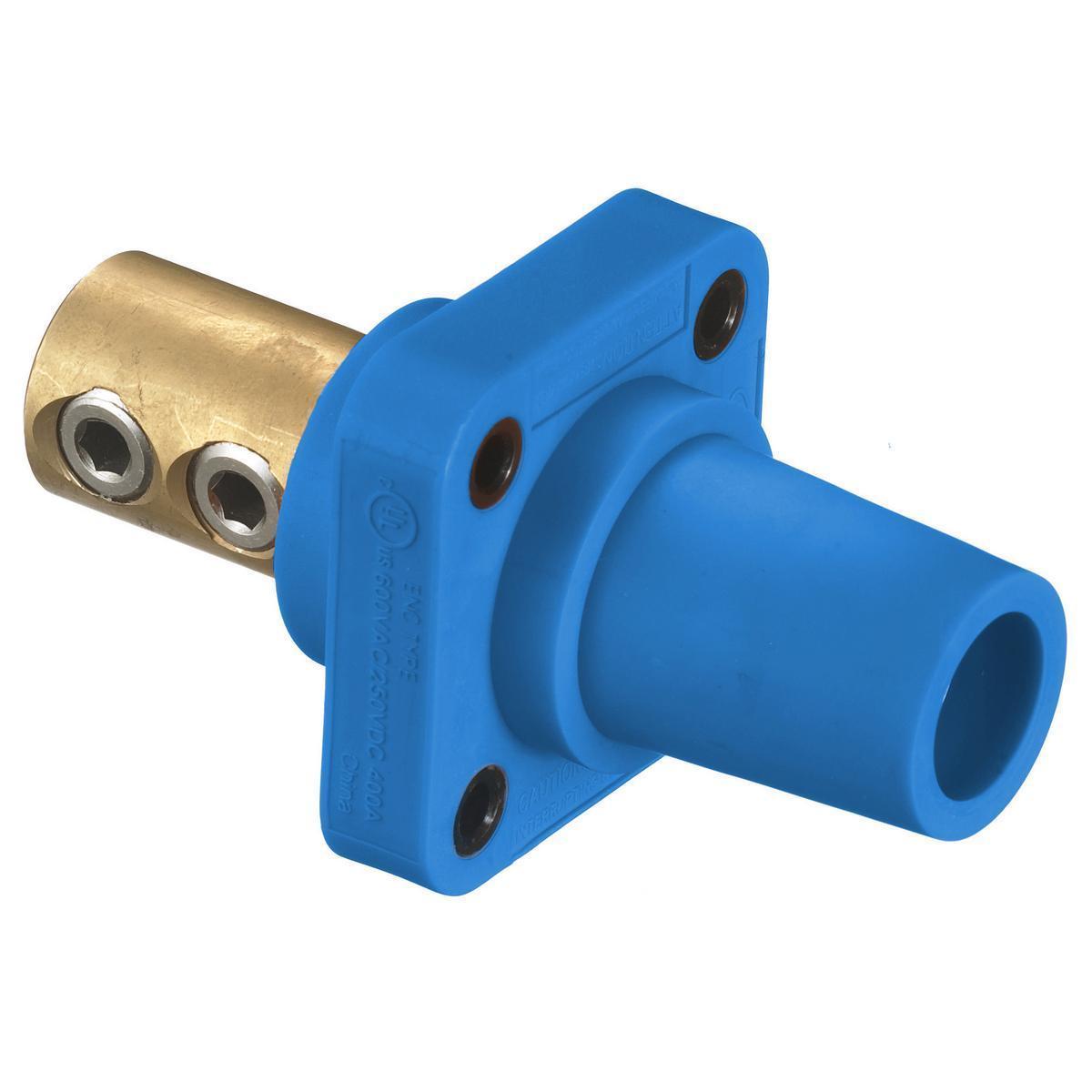

Hubbell Wiring Device-Kellems HBLFRBL 16 Series 1-Pole Female Heavy Duty Industrial Grade Standard Single Pole Receptacle, 600 V AC/250 V DC, 400 A, 4 to 4/0 AWG Wire, Screw Terminal Connection, 3R/4X/12 NEMA Rating
Sku #78358511260
MFG #HBLFRBL
Attributes
| Type: | 1-Pole Female Heavy Duty Industrial Grade Standard |
| Voltage Rating: | 600 V AC/250 V DC |
| Wire Size: | 4 to 4/0 AWG |
| Series: | 16 Series |
| Amperage Rating: | 400 A |
| Connection Type: | Screw Terminal |
- With lock indicator symbol making mating clear and simple, devices can lock 180 deg to prevent unintended disconnects
- Provides high contact pressure and vibration resistant connection, which helps reduce operating temperatures and extends product life
- Special screw thread requires fewer turns than most competitors and reduces the risk of a conductive screw being substituted
- Extra long non-conductive inner sleeve reduces force required to install housing over contacts, easier to rotate contact in body for installing retaining screw
- Engineered body design makes installation simple with no need for additional tools and the non-metallic retaining screw helps to make operation safe for all involved
- Strip gauge molded into every plug and receptacle housing, simplifies installation and saves time
- Indoor dry unless protected by additional mean environmental conditions
- Highly conductive brass contacts improve performance and extend life
- Insulgrip® style housing for superior gripping conforms to the users hand making it easy to connect and disconnect, even with gloves on
- Easily identifiable cable cut-off points for secure fit allows you to easily customize and cut the housing to the required/correct cable size
- Rounded corners reduce the possibility of catching or snagging on structures or equipment
- Recessed mounting screw minimizes screwdriver slippage
- High Ampacity Connections, Stage, Studio Power, Portable Power Distribution, Lighting, On-Location Filming, Carnival, Theme Park, Temporary Power Applications and Indoor Dry Environment
- RoHS Compliant|cULus Listed|CSA 22.2. 0.17|ANSI/NFPA 70|NEC|UL HB|UL94 Flammability Rating|UL 498/1691
