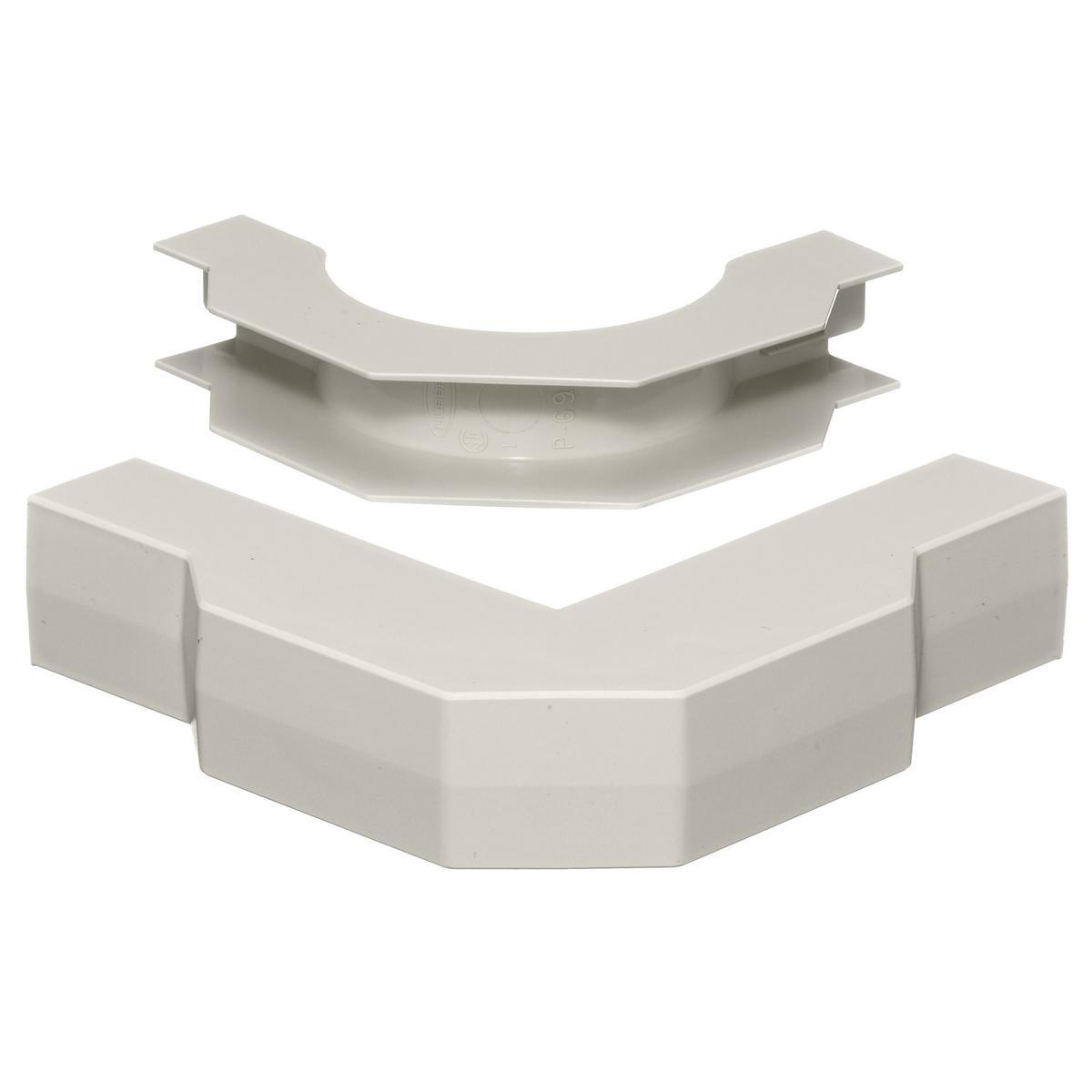

Hubbell Wiring Device-Kellems PP1EEBC External Extruded Latching Non-Metallic Standard Raceway Elbow, 1-1/4 in Bend Radius, 0.29 sq-in, PVC
Sku #78358509049
MFG #PP1EEBC
Attributes
| Type: | External Extruded Latching Non-Metallic Standard |
| Size: | 0.29 sq-in |
| Material: | PVC |
| Bend Radius: | 1-1/4 in |
| Suitable For Use With: | PremiseTrak® PP1 Series Latching Non-Metallic Raceway |
| Color: | Off-White |
- Boxes have three cut always that can be utilized with WALLTRAK®, LANTrak® and PREMISETRAK® (latching) systems
- Without knockouts
- Eliminates need to order three separate boxes and reducing inventory requirements
- 2-gang divided box available for power, data, voice, audio and video applications
- Boxes utilize Hubbell® KP plates or iSTATION™ modules and bezel
- Full capacity in-line boxes eliminate the need to de-rate the wire fill capacity due to the intrusion of devices into the raceway channel
- 5 ft-lb impact resistance
- -25.6 to 158 deg F temperature
- Base and Cover
- UL 5A File No. E118895/E119190|EIA/TIA-569A|CSA C22.2 No. 62, LR87514|UL 94V-0 Flammability Rated
- Non-Hazardous Locations
