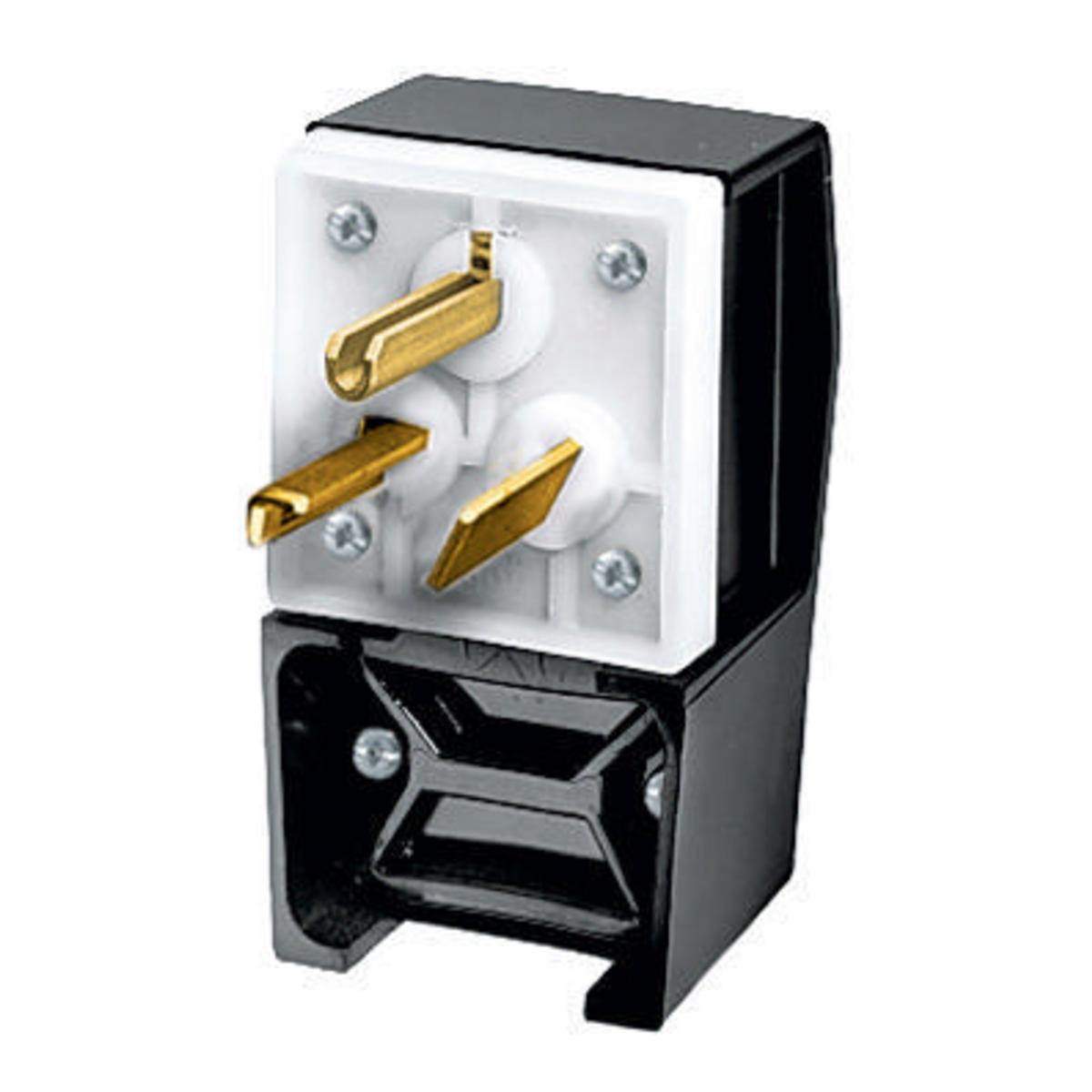

Hubbell Wiring Device-Kellems HBL9319 1-Phase Angled Grounding Heavy Duty Male Cord Mount Straight Blade Plug, 277 V AC, 30 A, 2 Poles, 3 Wires, Black
Sku #78358501552
MFG #HBL9319
Attributes
| Type: | 1-Phase Angled Grounding Heavy Duty Male Cord Mount |
| Amperage Rating: | 30 A |
| Number of Poles: | 2 |
| Voltage Rating: | 277 V AC |
| Horsepower: | 3 hp |
| Number of Wires: | 3 |
- Indoor Dry Environment, Commercial and Industrial Applications
- RoHS Compliant|UL 498|NEMA WD1/WD5|CSA Certified
- Four position assembly
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Withstands 2000 VAC minimum dielectric voltage
- All portable cord
- Indoor dry unless protected by additional mean environmental conditions
- Cord mounted
- Reinforced thermoplastic polyester blade holder
- Steel zinc plated terminal screw
- Brass contact blades
- https://youtu.be/1DnPJu3QNw0
