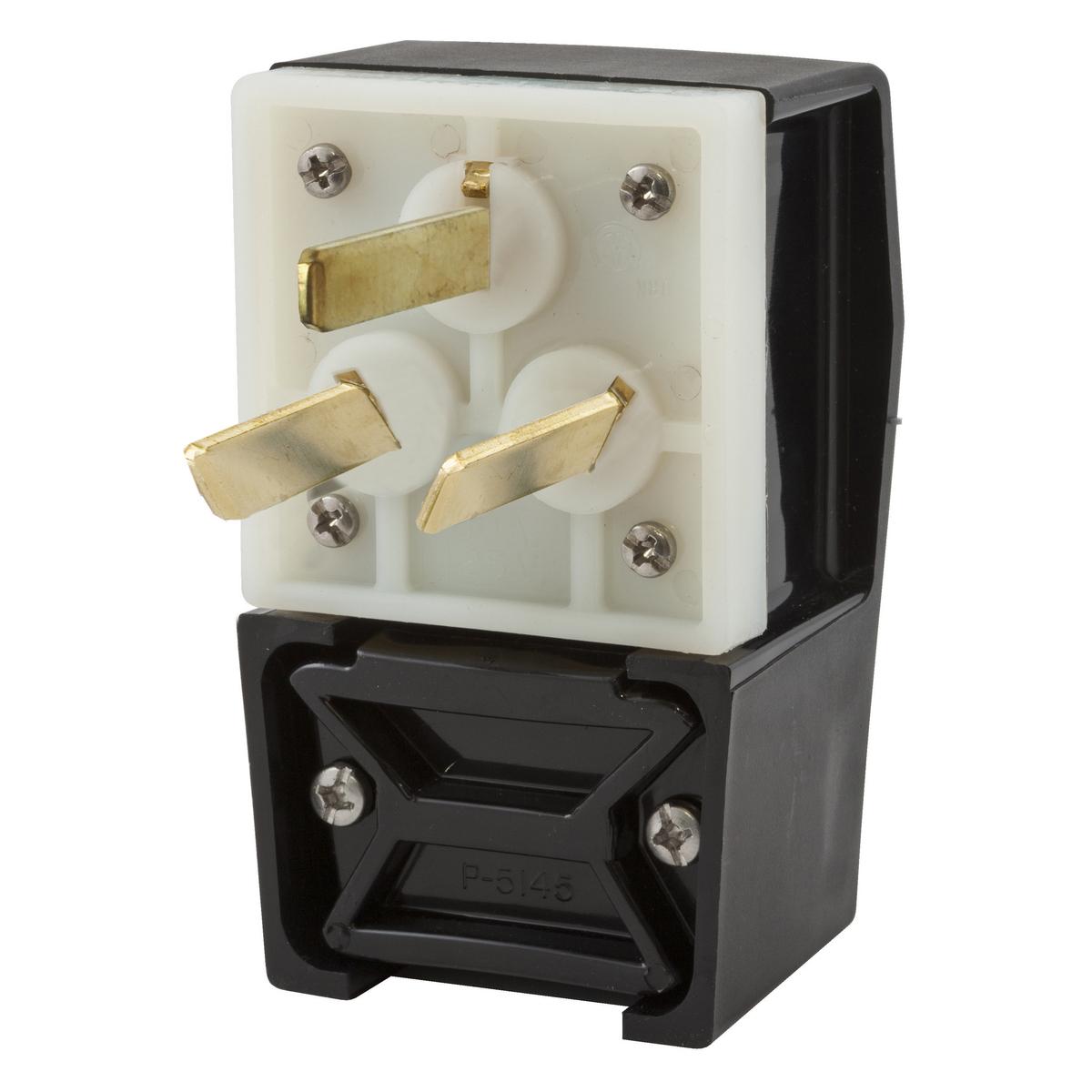

Hubbell Wiring Device-Kellems HBL7977 1-Phase Angled Heavy Duty Male Non-Grounding Cord Mount Straight Blade Plug, 125/250 V AC, 50 A, 3 Poles, 3 Wires, Black
Sku #78358501513
MFG #HBL7977
Attributes
| Type: | 1-Phase Angled Heavy Duty Male Non-Grounding Cord Mount |
| Amperage Rating: | 50 A |
| Number of Poles: | 3 |
| Voltage Rating: | 125/250 V AC |
| Horsepower: | 3/2 hp |
| Number of Wires: | 3 |
- Four position assembly
- 12 to 4 AWG copper stranded or solid wire size
- All portable cord
- Cord mounted
- Reinforced thermoplastic polyester blade holder, retainer and cord clamp
- 0.06 in (1.5) brass contact blades
- 3/8 in Allen head, plated steel ground screw
- Copper box terminal
- Withstands 2000 VAC minimum dielectric voltage
- Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
- https://youtu.be/1DnPJu3QNw0
- RoHS Compliant|NEMA WD1/WD5|UL 498 File No. E2186
