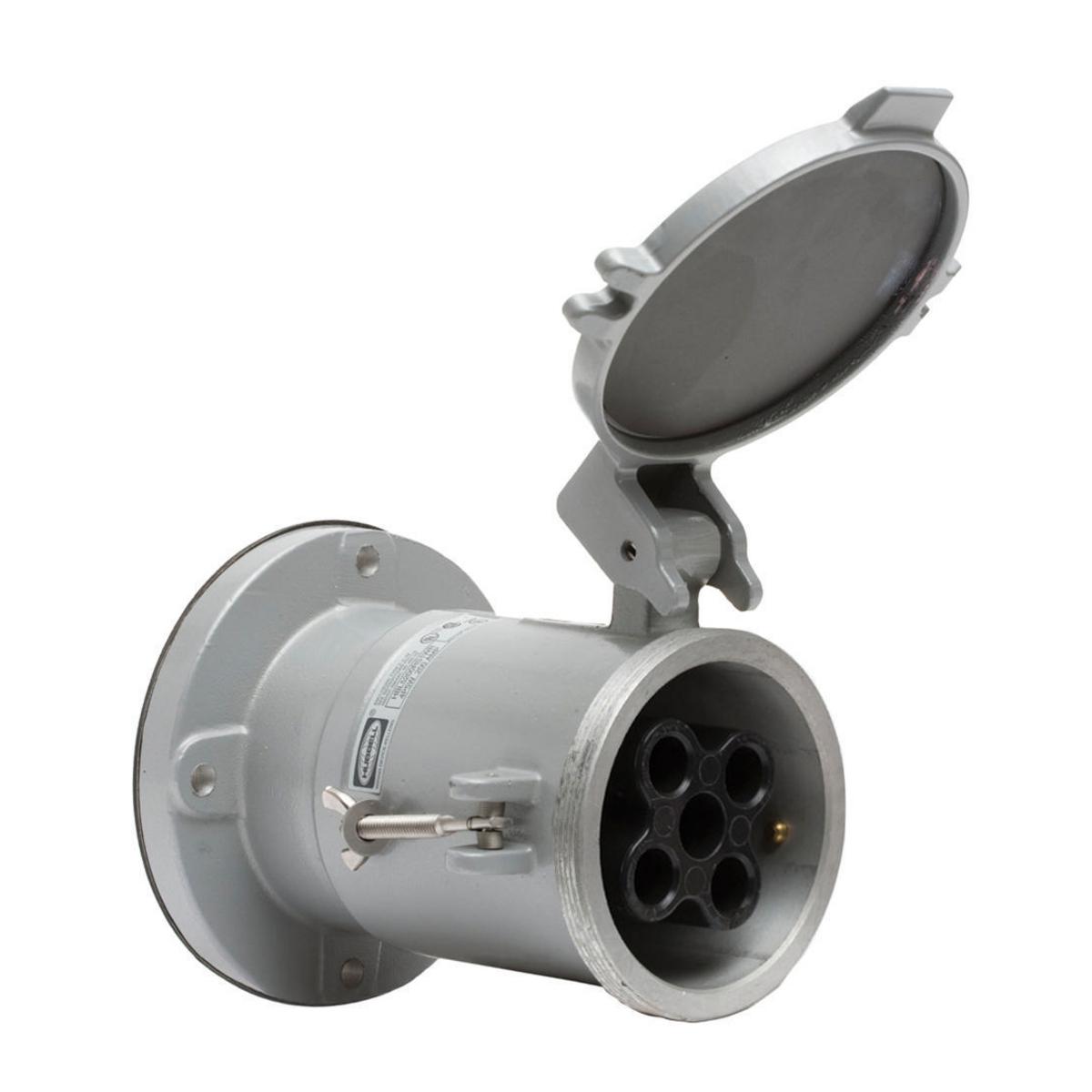

Hubbell Wiring Device-Kellems HBL® Insulgrip® HBL5200RS1W 3-Phase Flanged Grounding Non-NEMA Style 1 Single Standard Watertight Screw Mount Pin and Sleeve Receptacle, 600 V AC, 200 A, 4 Poles, 5 Wires, Black/Gray
Sku #78358501156
MFG #HBL5200RS1W
Attributes
| Type: | 3-Phase Flanged Grounding Non-NEMA Style 1 Single Standard Watertight Screw Mount |
| Amperage Rating: | 200 A |
| Number of Wires: | 5 |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 4 |
| Grade: | Industrial |
- Pin chamber confines arcing within the interior chamber
- Spring-Loaded, gasketed cover for dust-tight seal
- Watertight neoprene sealing glands for reliable seal
- https://youtu.be/1DnPJu3QNw0
- High Ampacity Connections Applications
- RoHS Compliant|CSA C22.2 File No. 182.1|UL498|UL 746C/498/1686|CSA Certified|UL94 V-0/5VA Flammability Rating
