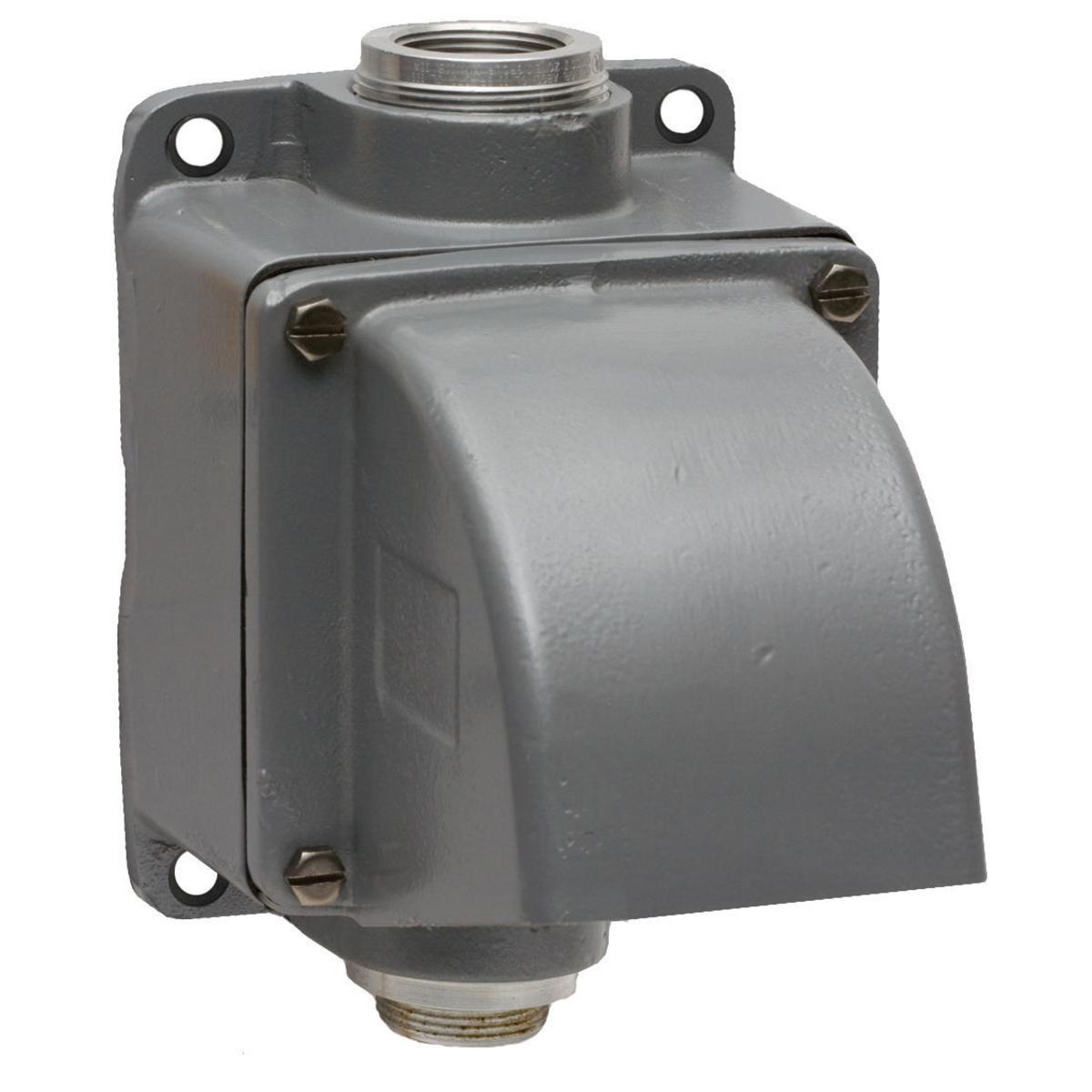

Hubbell Wiring Device-Kellems Insulgrip® MB601006W 1-Outlet, 4-Way 15 deg Angled Feed-Through Standard Back Box, 7.98 in H 6.14 in W 8.55 in D, For Use With Insulgrip® 60, 100 A Pin and Sleeve Devices, Cast Aluminum
Sku #78358501130
MFG #MB601006W
Attributes
| Type: | 1-Outlet, 4-Way 15 deg Angled Feed-Through Standard |
| Width: | 6.14 in |
| Suitable For Use With: | Insulgrip® 60, 100 A Pin and Sleeve Devices |
| Height: | 7.98 in |
| Depth: | 8.55 in |
| Material: | Cast Aluminum |
- Industrial Applications
- Stainless steel (300 series) hinge spring, metallic back box
- Withstands 3000 VAC minimum dielectric voltage
- Suitable for use on a circuit capable of delivering not more than 10000 RMS symmetrical amperes at the voltage rating of the receptacle short circuit withstand
- Identification and ratings are a part of the external label and molded into the receptacle mount product identification
- Stainless steel (300 series) assembly screws, neoprene gaskets
- In accordance with UL746C impact resistance
- Industrial Grade
- 10000 mechanical cycles, 6000 electrical cycles endurance
- Mounting Screw
- UL94 V-0/5VA Flammability Rating|RoHS Compliant|UL 514|CSA Certified
- Limited
