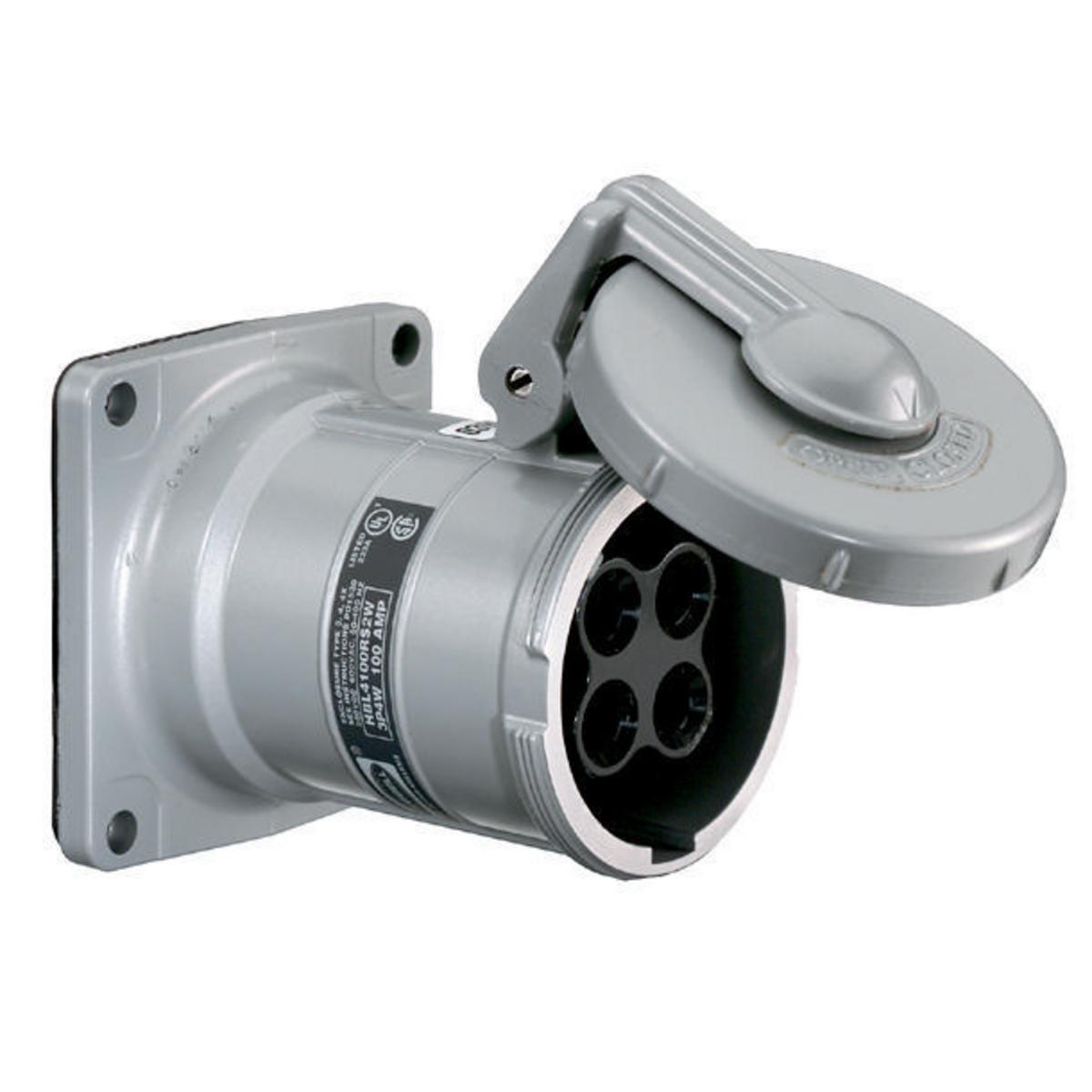

Hubbell Wiring Device-Kellems HBL® Insulgrip® HBL4100RS2W 1/3-Phase Flanged Grounding Non-NEMA Style 2 Single Standard Watertight Screw Mount Pin and Sleeve Receptacle, 600 V AC, 100 A, 3 Poles, 4 Wires, Black/Gray
Sku #78358501112
MFG #HBL4100RS2W
Attributes
| Type: | 1/3-Phase Flanged Grounding Non-NEMA Style 2 Single Standard Watertight Screw Mount |
| Amperage Rating: | 100 A |
| Number of Poles: | 3 |
| Voltage Rating: | 600 V AC |
| Frequency Rating: | 50 to 400 Hz |
| Number of Wires: | 4 |
- High Ampacity Connections Applications
- Pin chamber confines arcing within the interior chamber
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- https://youtu.be/1DnPJu3QNw0
- UL 1682/50/1010/498/1686|CSA C22.2 No. 182.1/94/159|RoHS Compliant|UL498
