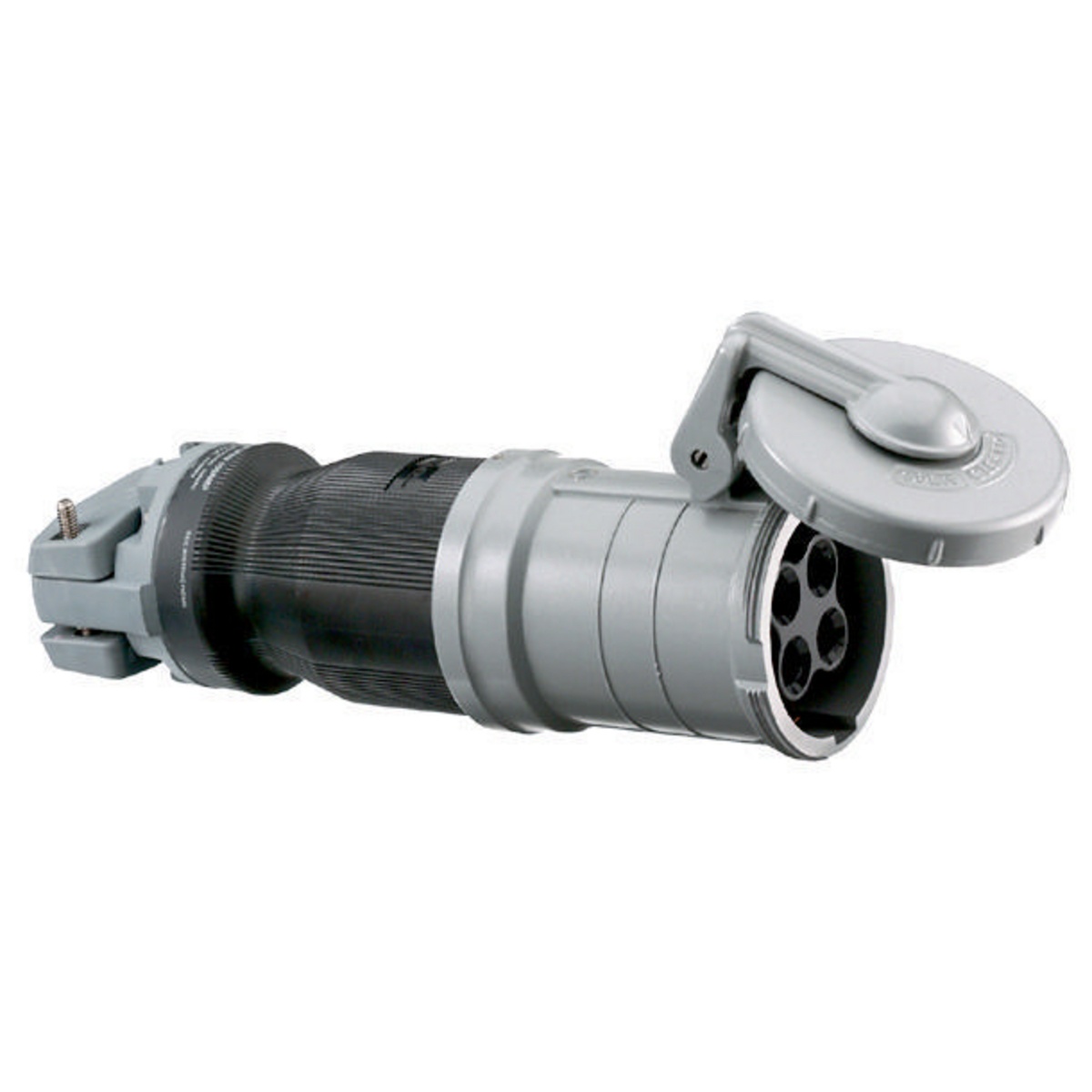

Hubbell Wiring Device-Kellems HBL4100CS2W 3-Phase Female Heavy Duty Standard Watertight Cord Mount Pin and Sleeve Connector, 600 V AC/250 V DC, 100 A, 3 Poles, 4 Wires, Black/Gray
Sku #78358501110
MFG #HBL4100CS2W
Attributes
| Type: | 3-Phase Female Heavy Duty Standard Watertight Cord Mount |
| Amperage Rating: | 100 A |
| Number of Poles: | 3 |
| Voltage Rating: | 600 V AC/250 V DC |
| Frequency Rating: | 50 to 400 Hz |
| Number of Wires: | 4 |
- Spring-Loaded, gasketed cover for dust-tight seal
- Watertight neoprene sealing glands for reliable seal
- Pin chamber confines arcing within the interior chamber
- https://youtu.be/1DnPJu3QNw0
- High Ampacity Connection Applications
- UL 1682/1686/50/1010/498|CSA C22.2 No. 182.1/94/159|UL1686
