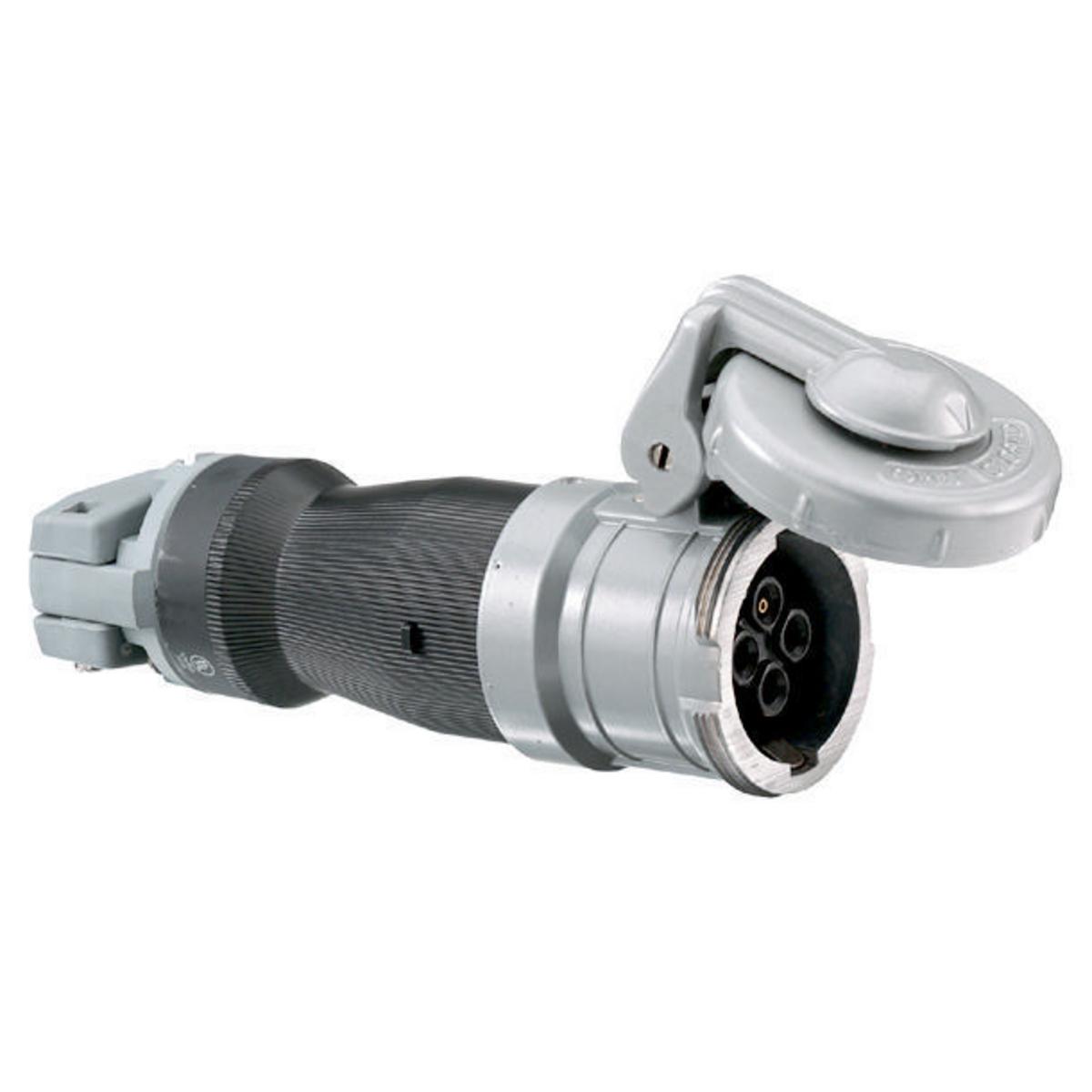

Hubbell Wiring Device-Kellems Insulgrip® HBL560CS1W Female Heavy Duty Standard Watertight Cord Mount Pin and Sleeve Connector, 600 V AC/250 V DC, 60 A, 4 Poles, 5 Wires, Black/Gray
Sku #78358501068
MFG #HBL560CS1W
Attributes
| Type: | Female Heavy Duty Standard Watertight Cord Mount |
| Amperage Rating: | 60 A |
| Number of Poles: | 4 |
| Voltage Rating: | 600 V AC/250 V DC |
| Frequency Rating: | 50 to 400 Hz |
| Number of Wires: | 5 |
- Watertight neoprene sealing glands for reliable seal
- Pin chamber confines arcing within the interior chamber
- Spring-Loaded, gasketed cover for dust-tight seal
- https://youtu.be/1DnPJu3QNw0
- High Ampacity Connection Applications
- UL1686|UL 1682|CSA C22.2 File No. 182.1|UL 498/1686|CSA Certified
