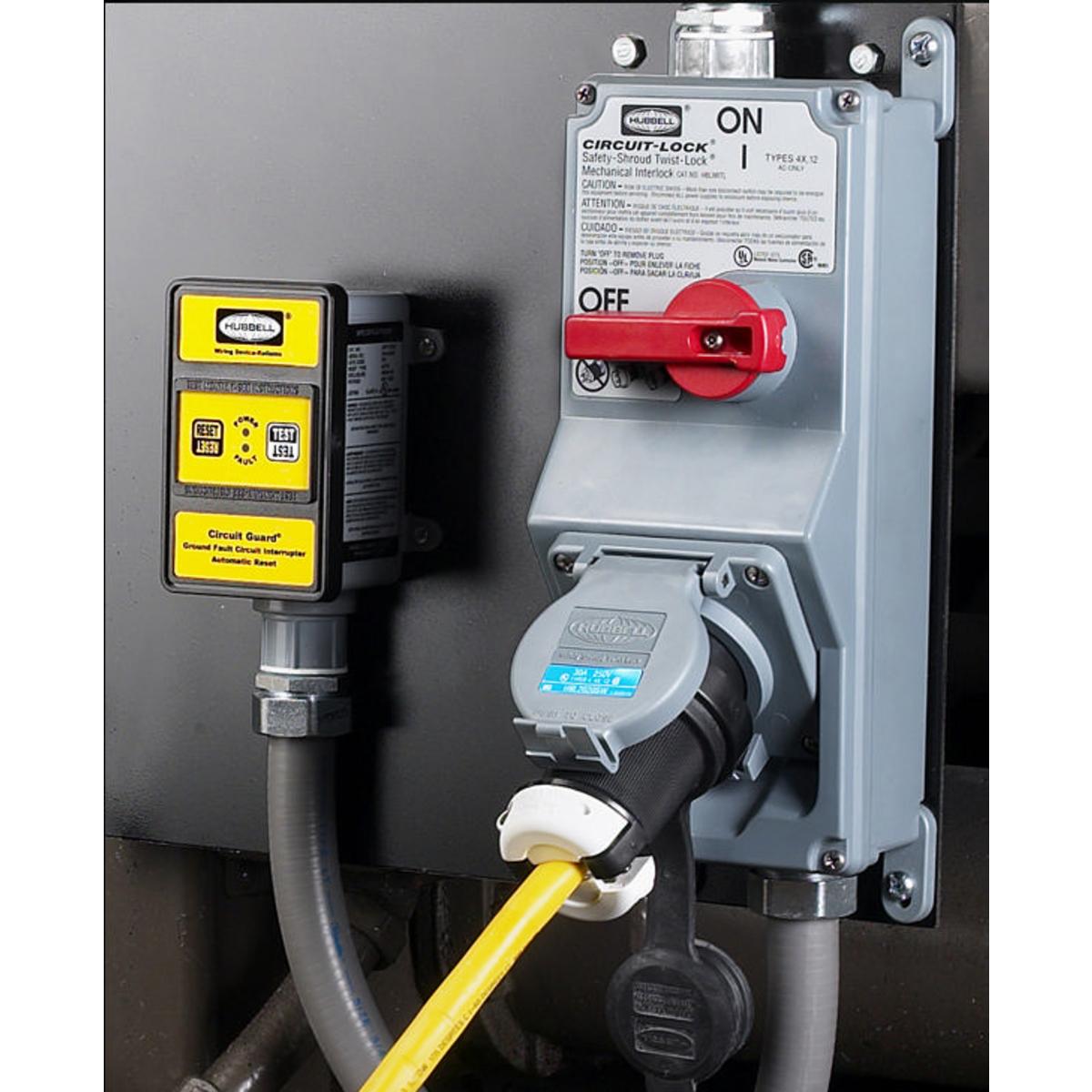

Hubbell Wiring Device-Kellems Circuit Guard® GFHW33135 4-Wire Automatic Multi-Strand Industrial Grade Fabricated Hard Wired GFCI, 120/240 V AC, 30 A, 7200 W Power Rating, NEMA 4X Enclosure, Thermoplastic
Sku #78358500543
MFG #GFHW33135
Attributes
| Type: | 4-Wire Automatic Multi-Strand Industrial Grade Fabricated |
| Amperage Rating: | 30 A |
| Temperature Rating: | -30 to 150 deg F |
| Voltage Rating: | 120/240 V AC |
| Power Rating: | 7200 W |
| Enclosure: | NEMA 4X |
- Industrial, Commercial and Wire into Circuit Applications
- Automatically energizes or sets the GFCI for use once power is applied to the circuit
- After a ground fault condition, unit must be reset by pushing the reset button
- This feature eliminates the need for the unit to be reset each time the power is turned on
- Automatic reset is ideal where temporary power failure is likely and undesirable such as waste water treatment plants, portable signs and some pump applications
- Offers a 4 to 6 mA trip level
- 24 VDC output signal
- Green light illuminates when unit has power and no ground fault is present
- Red light begins blinking when a ground fault is detected and the output power is interrupted
- Foam Gasket, Mounting Template, Detailed Instructions
- cULus Listed|UL 943
