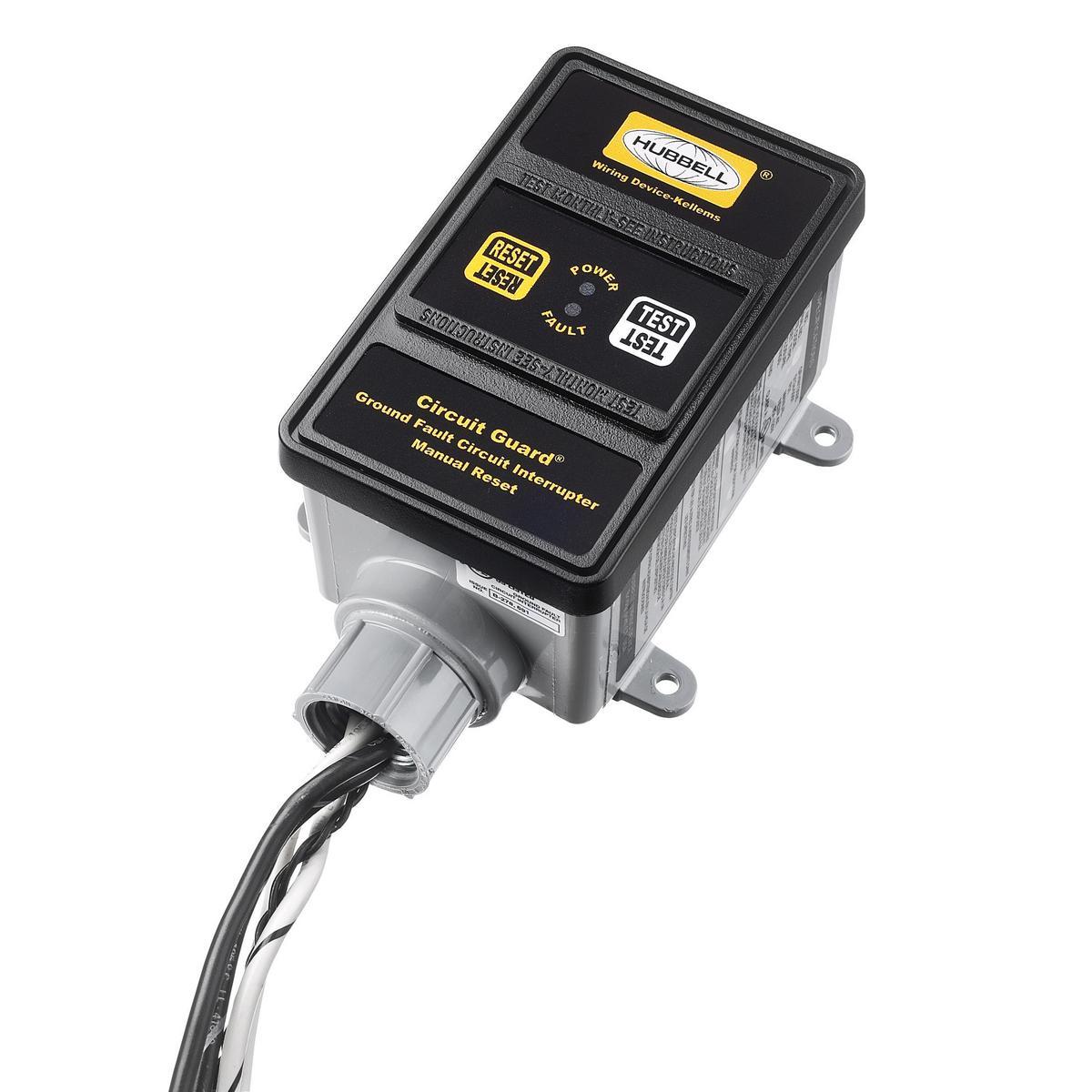

Hubbell Wiring Device-Kellems GFHW33005 Hard Wired GFCI, 120/240 VAC, 30 A, 7200 W Power Rating, NEMA 4X Enclosure, Thermoplastic
Sku #78358500522
MFG #GFHW33005
Attributes
| Type: | 4-Wire Manual Multi-Strand Fabricated Hard Wired |
| Amperage Rating: | 30 A |
| Frequency Rating: | 60 Hz |
| Voltage Rating: | 120/240 V AC |
| Power Rating: | 7200 W |
| Temperature Rating: | -30 to 150 deg F |
- Requires the GFCI to be manually reset for use by pressing the reset button after the loss of primary power
- Must be also manually reset after a ground fault condition
- Manual reset is ideal for applications where operator injury might occur if equipment were to restart after a power failure
- Offers a 4 to 6 mA trip level
- Green light illuminates when unit has power and no ground fault is present
- Red light begins blinking when a ground fault is detected and the output power is interrupted
- Wire into circuit
- Without output
- Industrial, Commercial and Wire into Circuit Applications
- cULus Listed|UL 943|CSA Certified|OSHA 29 CFR 1926.405 (a) (2) (ii) (G)|NEC 590.6|NEC 511.12|NEC 680.5B|NEC 680.40|NEC 555.3
- Foam Gasket, Mounting Template and Detailed Instructions
