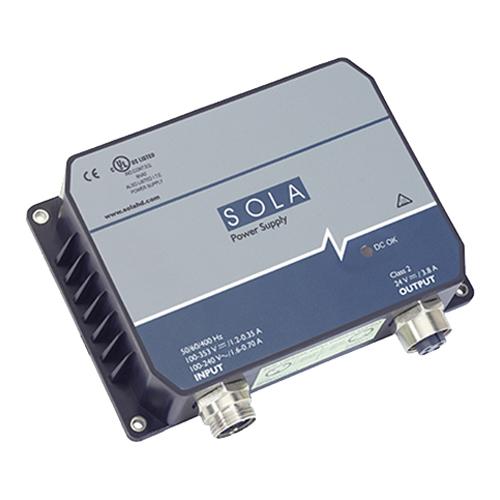

SolaHD SCP100S24X-CP1 SCP-X Extreme Environment 1-Phase Power Supply, 86 to 267 V AC/100 to 353 V DC Input, 24 VDC Output, 100 W, 3.8 A, Surface Mount
Sku #78347287030
MFG #SCP100S24X-CP1
Attributes
| Type: | 1-Phase |
| Input Voltage: | 86 to 267 V AC/100 to 353 V DC |
| Power Rating: | 100 W |
| Series: | SCP-X Extreme Environment |
| Output Voltage: | 24 V DC |
| Amperage Rating: | 3.8 A |
- IP66/67 rated versatile enclosure
- 24 VDC, 100 to 240 VAC, up to four outputs at 3.8 A nominal current
- Class 2 listed power supply for stand alone applications
- Can be mounted in any orientation without limitation
- Safety approved for AC and DC universal input
- Reliable operation from -40 to 60 deg C without derating
- DC OK green LED indicator
- UL File No. E61379|UL 508|CSA C22.2 No. 107.1|UL 60950-1|CSA C22.2 No. 60950-1|UL File No. EN 60950-1|cULus Listed|ITE Certified|CE Certified|RoHS Compliant|ODVA Approved|IEC Approved
