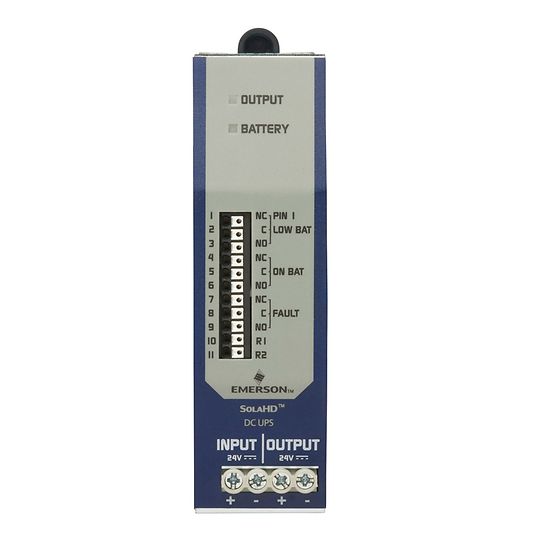

SolaHD SDU24BATB SDU DC Battery Module, 22.5 to 30 V DC Input, 24 VDC Output, 10 A/240 W Power Rating, 14 min Backup
Sku #78347201950
MFG #SDU24BATB
Attributes
| Type: | DC |
| Input Voltage: | 22.5 to 30 V DC |
| Power Rating: | 10 A/240 W |
| Series: | SDU |
| Output Voltage: | 24 V DC |
| Backup Time: | 14 min |
- Industrial/Machine Control, Automation Process Control, Computer-based Control Systems, Conveying Equipment, Material Handling, Packaging Machines, Semiconductor fabrication equipment, DeviceNet, Amusement Park Equipment, Pharmaceutical Applications, Control Rooms
- Modular, rugged industrial grade design. No internal fan, no extra cooling required
- Microprocessor based controls
- Automatic self-test feature for UPS function and battery management check
- Overload protection in normal and battery modes. Configurable battery expansion capabilities to achieve desired runtime. User replaceable batteries
- Universal dry contact relay terminals provide remote signaling
- LED status indicators. Monitoring, diagnostics, and remote turn-on and shut-off capabilities
- cULus Listed|UL/CSA 61010-1, UL/CSA 61010-2-201|UL Recognized|UL/CSA 62368-1, UL/CSA 60950-1|CE Certified|IEC/EN60950-1, IEC/EN 62368-1, IEC/EN 61010-1, IEC/EN 61010-2-201
