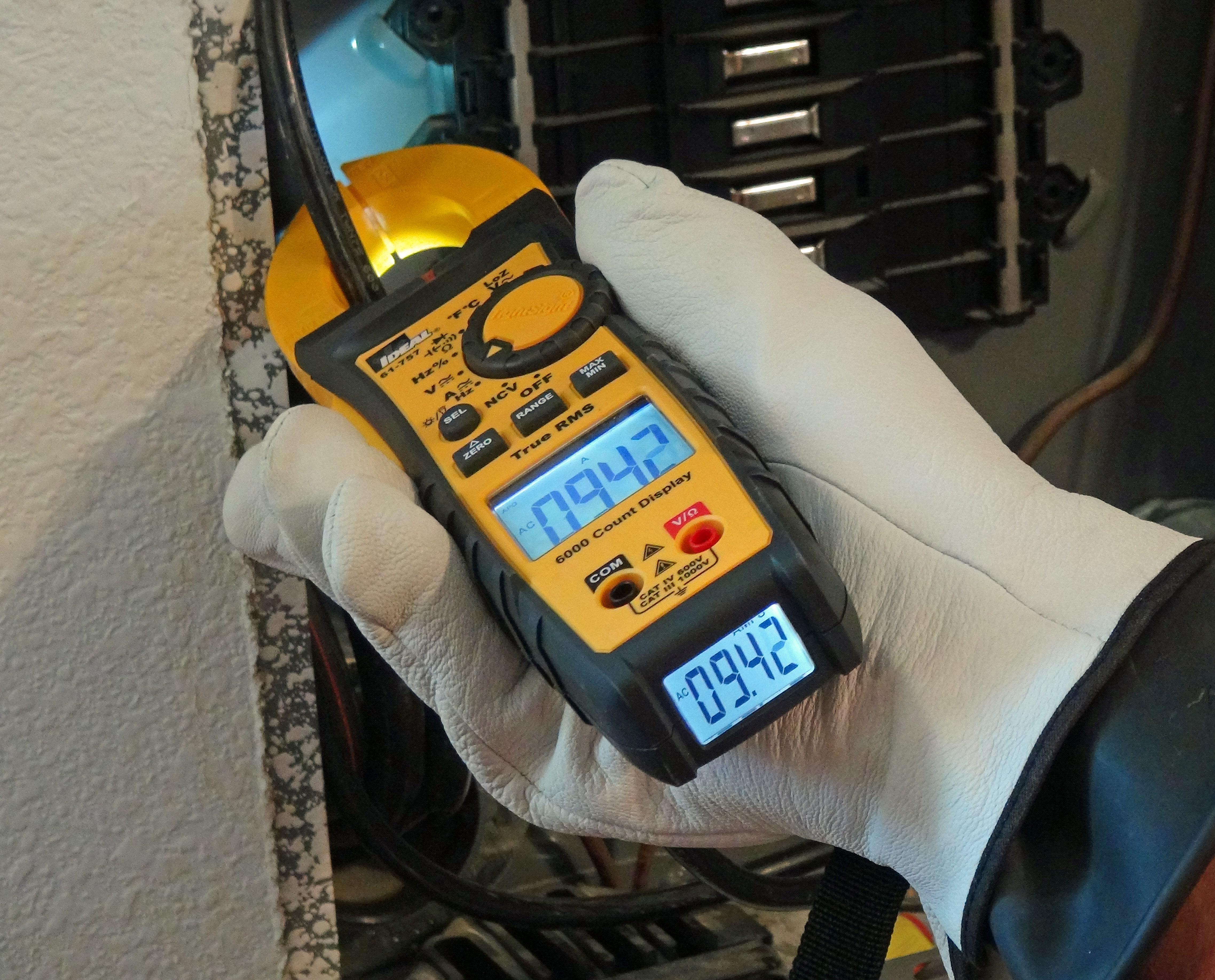

IDEAL® TightSight® 61-757 Digital Clamp Meter With Backlit, Flashlight, 600 V AC, 600 A, 60 MOhm, 10 to 9999 Hz, 1.4 in Jaw, Backlit LED Display
Sku #78325051358
MFG #61-757
Attributes
| Type: | Digital |
| Resistance: | 60 MOhm |
| Jaw Capacity: | 1.4 in |
| Electrical Ratings: | 600 V AC, 600 A |
| Frequency Rating: | 10 to 9999 Hz |
| Counts: | 6000 |
- Patented TightSight Display eliminates the need to bend or twist conductors or place your head near or in the panel and allows you to easily read the bottom display when taking measurements
- Provides True RMS AC voltage and current for accurate measurements on non-linear signals
- Built-in probe tip holder and hanging strap clip allows safer, easier measurement
- Built-in Flashlight and dual backlit displays, allow for safer/faster work in poorly lit environments
- https://vimeo.com/596101645
- Measures AC/DC Current, AC/DC Voltage, Frequency, Resistance, Continuity, Capacitance, Diodes, Temperature, Low Impedance AC Voltage (lo Z) (To Reduce the Possibility of False Readings Due to Ghost Voltages) and Senses AC Voltage
- 2 years
- Soft Case, Test Leads, Batteries and K-Type Thermocouple
- RoHS Compliant|cULus Listed|CE Certified|RCM Certified|CISPR 22 3rd Edition. Class B/32/11|FCC 15. 107 Section 15.109 (g)|ICES-003|EN 61326-2-2 Sec 6.4.2.101/55032|47 CFR 15 B15.103|ANSI/UL/IEC EN 61010-1, Edition 3 (2015-07-15)|IEC 61010-2-032 (2019-06)/61010-2-033 (2019-06)/61010-1, Edition 3 (2010-06) +AMD1 (2016-12)
