Sku #78317390432
MFG #9T10A1001
Attributes

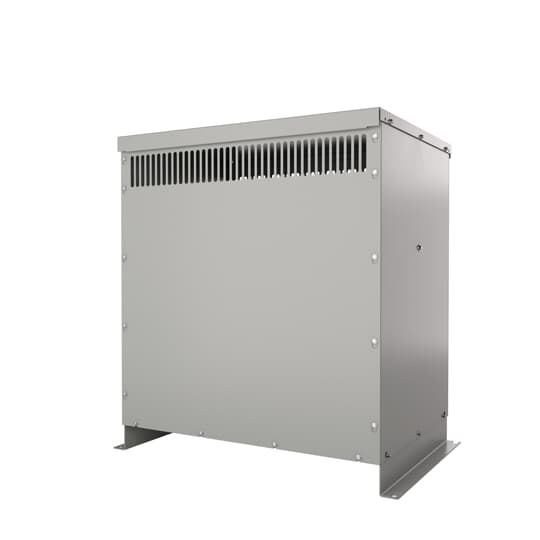

| Type: | Type QL Dry Type |
| Secondary Voltage: | 208Y/120 V AC |
| Frequency Rating: | 60 Hz |
| Primary Voltage: | 480 V AC |
| Power Rating: | 15 kVA |
| Phase: | 3 |
- No weld design an industry first
- Comprehensive factory testing assures quality
- Unique core and coil design makes QL transformers among the quietest available
- GE type QL transformers meet DOE 2016 efficiency standards
- Aluminum or copper windings and utilize a UL recognized 220 deg C insulation system
- Quiet performance
- Outward facing mounting feet lug kit included
- Core and coil assemblies are mounted on rubber isolation pads to reduce noise
- Bolted coil terminations are more reliable than welded terminations and they eliminate weld failures and problems associated with welding and weld splatter
- 1-piece front/back is easily removable for service
- NEMA 2 drip proof enclosure is standard weathershield kits are available for conversion to NEMA 3R outdoor configuration
- Qualified to the seismic requirements of IEEE-693-2005 and IBC-2012 and CBC 2013
- Robust packaging with top and side protection protects against shipping damage
- Accessible mounting flanges with front/back slotted mounting holes make installation easier
- 100% factory tested for shorts and coil integrity, current and loss, voltage, impedance and noise
- Clear, comprehensive documentation and labeling 10A1004
- 10 kV basic insulation level
- K1 factor rated transformer
- 3.7% impedance
- TY go schedule
- ASCE 7.05|CBC-2013|IEEE-693-2005|IBC-1012|UL Listed|DOE 2016
- Lug Kit and Ground Bar Kit
- Commercial, Industrial, Motors, Incandescent Lighting, Resistance Heating and Motor Generator Applications
