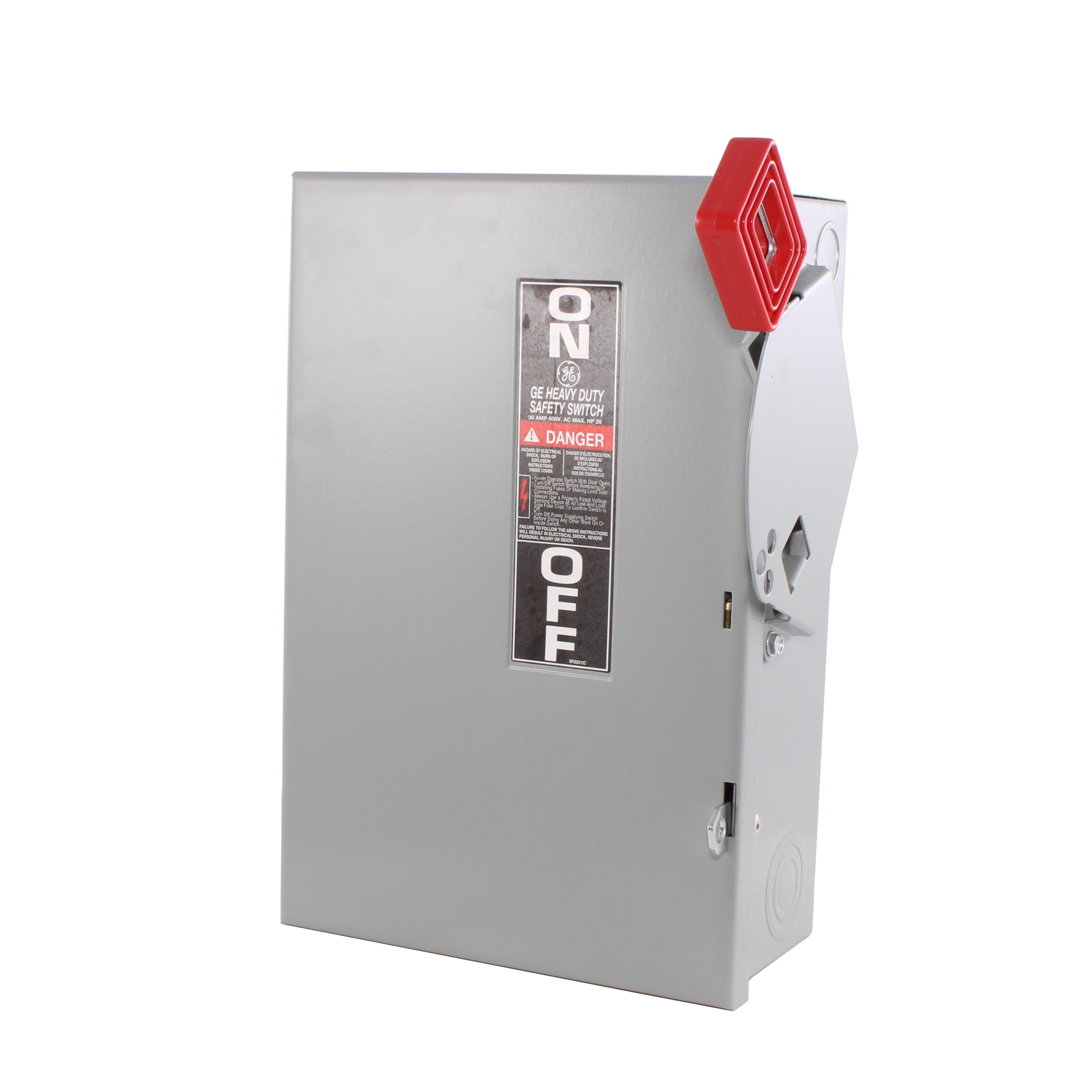

Sku #78316400909
MFG #TH3361
Attributes
| Type: | Fusible Heavy Duty |
| Voltage Rating: | 600 V AC |
| Horsepower: | 7-1/2 hp Standard Fuse/20 hp Time Delay |
| Series: | TH Series |
| Amperage Rating: | 30 A |
| Phase: | 3 |
- Commercial, Industrial, Electrical Distribution and Control Applications
- Donut handle ideal for hook stick operation and accepts 3 padlocks in the off position
- Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive on/off indication
- Self-leveling, 3-point mounting system
- Coin-proof, defeatable interlock
- Visible confirmation of plated blade contact positions
- Spring reinforced fuse clips assure reliable contact for cool operation
- With class R fuses or J fuses, 30 to 600 A switches have UL listed short circuit rating of 200000 rms symmetrical A
- Switches rated 800 to 1200 A use class L fuses and have a UL listed short circuit rating of 10000 rms symmetrical A
- UL listed as service entrance equipment when installed in accordance with the national electric code
- UL 98|CSA C22.2 No. 4-04|Federal Specification W-S-865C|NEMA KS1 - 2013|Seismic Certified
