Sku #78316400863
MFG #TG4321
Attributes

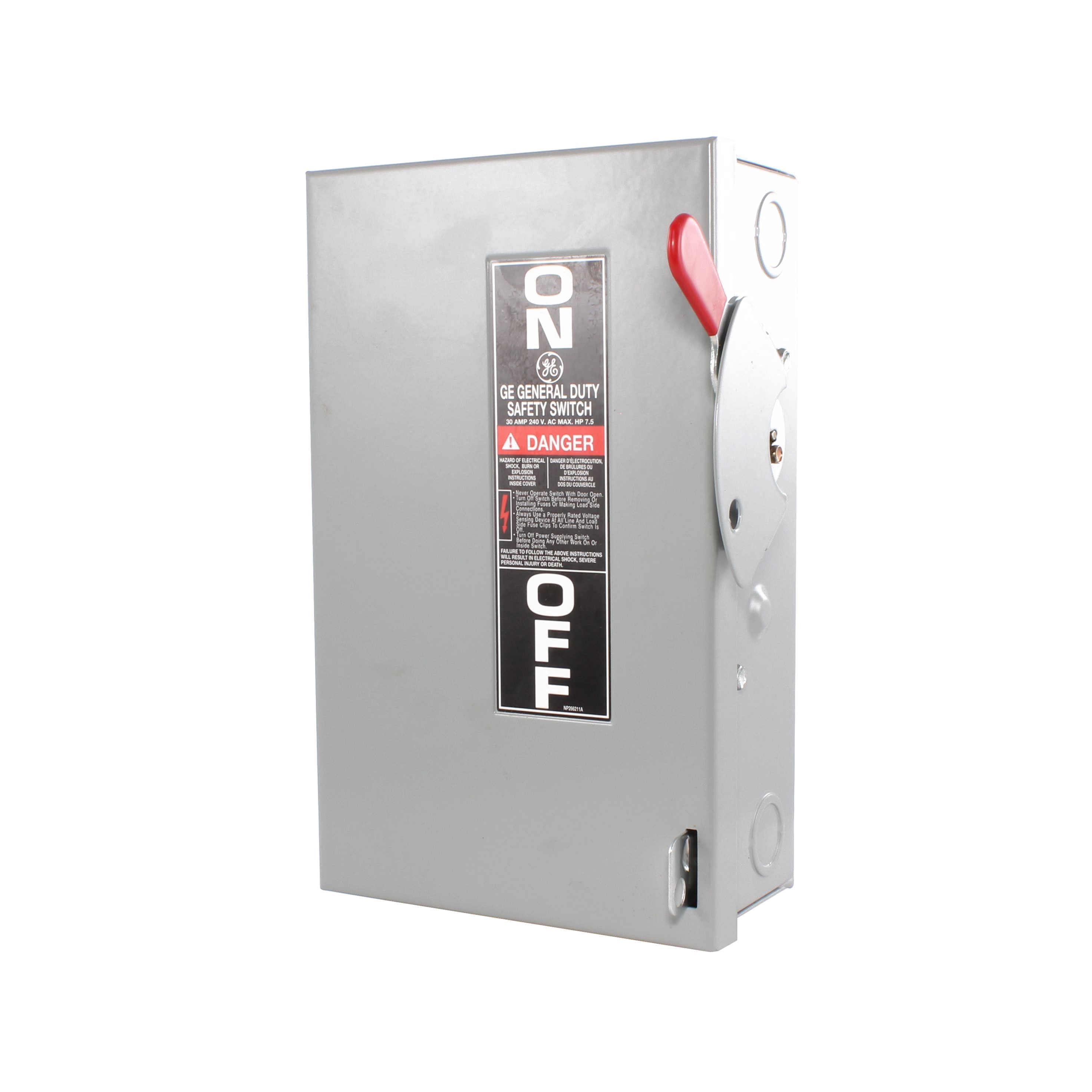

| Type: | Fusible General Duty |
| Voltage Rating: | 240 V AC |
| Horsepower: | 1.5 hp Standard Fuse/3 hp Time Delay |
| Series: | TG Series |
| Amperage Rating: | 30 A |
| Phase: | 1 |
- Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive on/off indication
- Self-leveling, 3-point mounting system
- Integral cover interlock
- Visible confirmation of plated blade contact positions
- Spring reinforced fuse clips assure reliable contact for cool operation
- Suitable for class H, K, J or R fuses, where applicable
- UL listed short circuit rating is 10000 rms symmetrical amps standard
- With class R fuses and fuse kits installed, 30 to 200 A switches have UL listed short circuit rating of 100000 rms symmetrical A
- UL 98|CSA C22.2 No. 4-04|cUL Listed|Federal Specification WS-865C|NEMA KS1-2013|Seismic Certified
- Residential, Light Commercial, Electrical Distribution and Control Applications
