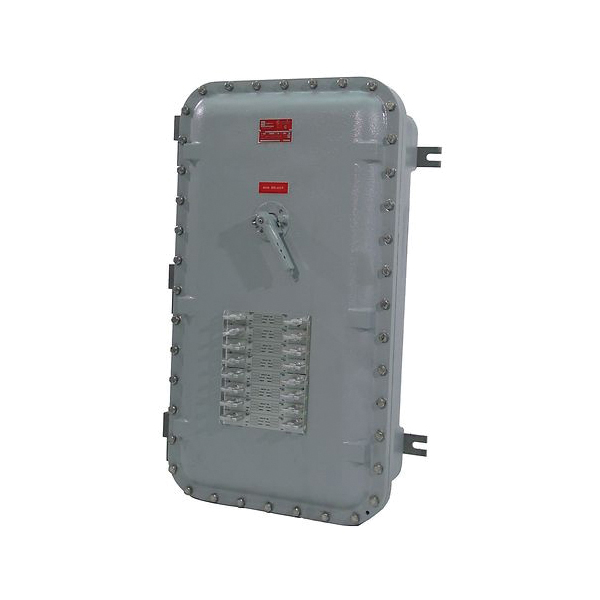

O-Z/Gedney NPPNG14C30ML 3-Phase 4-Wire Main Lug Non-Factory Power Sealed Distribution Panelboard, 277/480 V AC, 100 A, 3 Poles
Sku #78312698671
MFG #NPPNG14C30ML
Attributes
| Type: | 3-Phase 4-Wire Main Lug Non-Factory Power Sealed |
| Voltage Rating: | 277/480 V AC |
| Number of Poles: | 3 |
| Series: | NPPN |
| Amperage Rating: | 100 A |
| Number of Circuits: | 30 |
- For lighting, heating, small motors, similar electrical equipment, furnish protection and control of electrical equipment in hazardous locations
- Explosionproof, dust-ignitionproof, watertight
- Features a precision machined flame path between body and cover and an O-ring gasket to ensure watertight integrity
- Up to 100 A backfed main breaker available with main lug chassis
- Up to 225 A backfed main breaker available with main breaker chassis
- Permits selection of 1, 2 or 3-pole breakers
- Breaker operators can be padlocked in the On or Off position
- Provisions for 12, 18, 24, 30, 36 and 42 circuit 1-pole chassis
- Factory installed ground and neutral bar as standard
- All panelboards are supplied with Cutler-Hammer QUICKLAG™ B industrial circuit breakers
- UL 1203|UL File No. E84577|CSA C22.2|NEC Class I, Division 1, 2, Group B, C, D|Class II, Division 1, 2, Group E, F, G|Class III|Class I, Zone 1, Group IIB, H2
