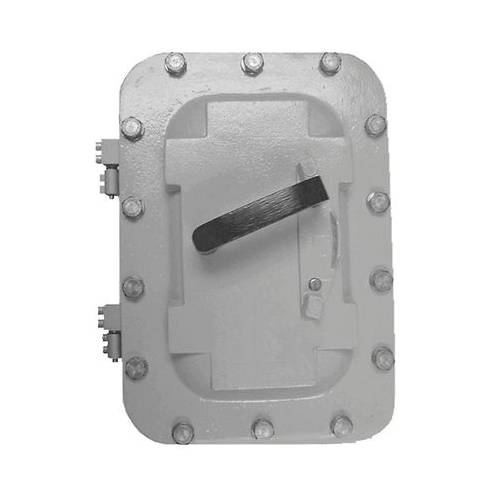

O-Z/Gedney NE3BG4W1 NEB 2-Speed 2-Winding Bolted Explosionproof Full Voltage Standard Watertight Motor Starter, 120 VAC V Coil, 3 Poles, NEMA 4/4X/7B/7C/7D/9E/9F/9G Enclosure
Sku #78312698455
MFG #NE3BG4W1
Attributes
| Type: | 2-Speed 2-Winding Bolted Explosionproof Full Voltage Standard Watertight |
| Voltage Rating: | 480 V AC |
| Motor Power: | 50 hp |
| Series: | NEB |
| Frequency Rating: | 60 Hz |
| Coil Voltage: | 120 V AC |
- Precision machined flame path between box and cover
- Bolt-on slotted mounting feet
- Stainless steel, captive Quad-Lead™ cover bolts
- External stainless steel breaker operating handle
- Ground lug package and installation instructions for termination of ground wires enclosed
- Four point control terminal block, NEMA 1B with wire markers
- Four plugged 3/4 in NPSM outlets drilled and tapped for control devices
- Standard outlets top and bottom
- Plugged 1/2 in outlets top and bottom for optional breather/drain
- Components are mounted on a galvanized steel removable pan
- O-ring gasket ensures watertight integrity
- NEMA Size 3
- For hazardous locations
- NEC/CEC Class I, Division 1, 2, Group B, C, D|Class I, Zone 1, 2, Group IIA, IIB, H2|Class II, Division 1, 2, Group E, F, G|Class III|UL 50|UL 698|UL 877|UL 1203|UL 508|CSA C22.2 No. 0-10|CSA C22.2 No. 14-10|CSA C22.2 No. 25-1996|CSA C22.2 No. 30-M1986|CSA C22.2 No. 94-M91|cCSAus 2561837|cULus Listed
