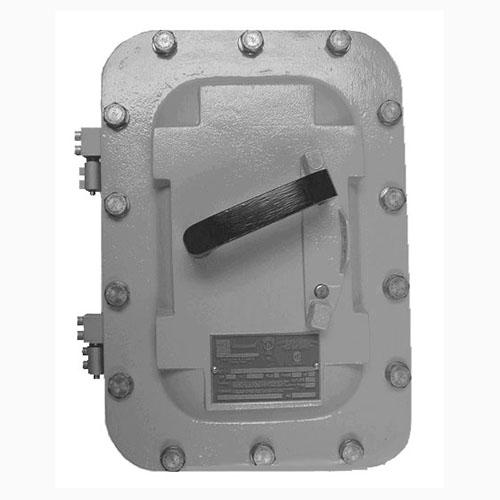

O-Z/Gedney NEAB3036DS NE Series Non-Fused Explosionproof Disconnect Switch, 600 VAC, 125/250 VDC, 30 A, 3 Poles
Sku #78312697853
MFG #NEAB3036DS
Attributes
| Type: | Non-Fused |
| Voltage Rating: | 600 V AC/125 to 250 V DC |
| Number of Poles: | 3 |
| Series: | NE Series |
| Amperage Rating: | 30 A |
| Actuator Type: | External Handle |
- For overload and short circuit protection, control of lighting and power circuits
- Buy American Act Compliant|UL 894/1203 File No. E84577|CSA 22.2
- Explosionproof, dust ignitionproof, watertight
- Precision machined flame path between box and cover
- Stainless steel hinges are standard
- Stainless steel, captive Quad-Lead™ cover bolts are standard (disengaged in 1-1/2 turns)
- Ground lug package and installation instructions for termination of ground wire enclosed
- External operating handle with stops for limiting handle travel
- Disconnects operators can be locked in the on or off position (up to 3 padlocks)
- External flange maximizes internal space
- Standard outlets top and bottom for line and load wiring
- Plugged 1/2 in outlets top and bottom for breather and drain
- Disconnects mounted on a galvanized steel removable pan
