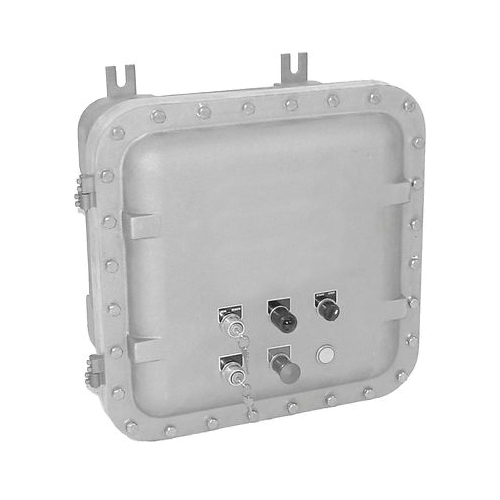

O-Z/Gedney NCSEW205610 Dust-Ignitionproof Explosionproof Control Center, 600 V AC, 10 A, NEMA 4/7B/7C/7D/9E/9F/9G NEMA Rating
Sku #78312697801
MFG #NCSEW205610
Attributes
| Type: | Dust-Ignitionproof Explosionproof |
| Voltage Rating: | 600 V AC |
| Operator Type: | Button |
| Series: | NCSEW |
| Amperage Rating: | 10 A |
| NEMA Rating: | NEMA 4/7B/7C/7D/9E/9F/9G |
- Precision machined flame path between body and cover
- Bolt-on stainless steel slotted mounting feet
- External flange maximizes internal space
- Wall thickness suitable for minimum of 5 full threads
- Factory assembled and wired to specifications
- Operators are spaced on 2-1/2 in centers
- All pushbuttons and selector switches have stainless steel shafts
- Pilot lights are rated 6 VAC, up to 600 VAC with transformer
- Provision for mounting pan
- Ground lug package and installation instructions for termination of ground wires enclosed
- O-ring gasket ensures watertight integrity
- Flexible hinge mounting on either side
- For hazardous materials are handled or stored, grouping push buttons, switches, pilot devices, glass lenses in one enclosure will satisfy a wide range of control applications, this is most beneficial when having areas with minimum space or needing to centralize all controls in one area
- NEC/CEC Class I, Division 1, 2, Group B, C, D, Class I, Zone 1, 2, Group IIA, IIB, Class II, Division 1, 2, Group E, F, G, Class III|UL 886|UL 1203|UL File No. E84577|UL File No. E87975|CSA C22.2 No. 14-M|CSA C22.2 No. 24|CSA C22.2 No. 30|CSA 042130
