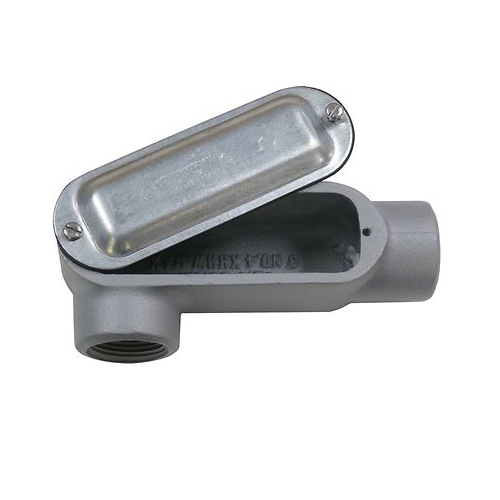

O-Z/Gedney Spec 5 LB-400G Type LB ™ Conduit Body, 4 in Hub, Form 35 Form, 330 cu-in Capacity, Malleable Iron, Hot Dipped Galvanized/Aluminum Enameled
Sku #78312632890
MFG #LB-400G
Attributes
| Type: | Type LB |
| Number of Hubs: | 2 |
| Form: | Form 35 |
| Hub Size: | 4 in |
| Capacity: | 330 cu-in |
| Connection Type: | Tapered NPT |
- For use to serve as pulling fittings, make bends in conduit system, provide openings for splicing, connect and change direction of conduit runs, allow connections for branch runs, IMC and rigid conduit
- Smooth, rounded integral bushings in hubs protect conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 35™ malleable iron Unilets™ are high tensile strength and ductility
- High corrosion resistance, high impact and shock resistance
- Sizes with flat back design ideal where fitting is mounted flat against surface
- 1/2 to 3 in blank covers are domed for extra wiring space
- Raintight when an Appleton™ cover and gasket are installed
- Exclusive built-in easy pulling rollers in type lb (1-1/4 to 4), eliminate damage when cable is pulled through hubs
- ARRA Compliant|UL 514A File No. E18095|CSA C22.2 No. 18 009795|Federal Specification A-A-50563|NEC/CEC Hazardous Locations Class 1 Division 2 Per NEC Section 501-4(B), NEMA:FB-1, FB-2.10
