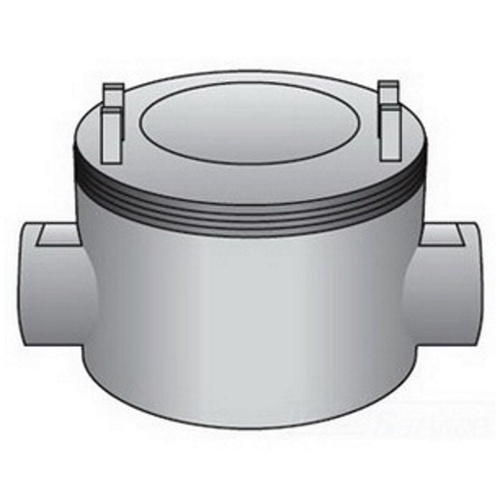

O-Z/Gedney GUAC-75 Dust-Ignitionproof Explosionproof Conduit Outlet Box, 3/4 in, 3 in Cover Opening, 15 cu-in, Aluminum Enamel/Zinc Electroplated
Sku #78312625701
MFG #GUAC-75
Attributes
| Type: | Dust-Ignitionproof Explosionproof |
| Size: | 3/4 in |
| Capacity: | 15 cu-in |
| Series: | GUA |
| Cover Opening Size: | 3 in |
| Suitable For Use With: | IMC/Rigid Conduit |
- For use in hazardous locations to provide for change in conduit direction access to conductors and as pull and splice boxes
- They feature internally threaded bodies and cast in brackets on the cover and are suitable for use wet locations
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- O-ring gasket provides NEMA 4 rating
- Smooth hub bushings protect insulation when pulling conductors
- Cast in brackets on cover for use with breaker bar tools for tightening/loosening
- Functions as a 25 PCT fill sealing fitting when used with GUASC sealing cover
- For providing access to conductors for pulling, splicing, maintece and future changes/upgrades, allows connection of straight conduit runs, branch conduit runs and 90 deg bends
- Limited
- ARRA Compliant|UL E-30513|Class I, Div 1, 2, Groups C, D|Class I, Zone 1, 2, Groups IIA, IIB|Class II, Div 1, 2, Groups E, F, G|Class III|CSA File No. 020945|UL 886|CSA C22.2 No. 30|NEC Articles 500-503, 505|Military Specification Mil-F-28675|Federal Specification A-A-50563
- O-Ring Gasket
