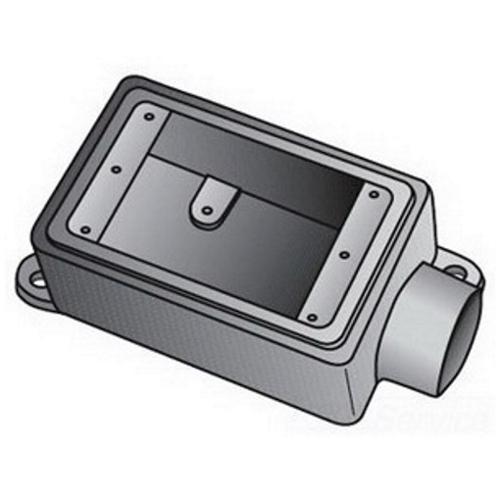

O-Z/Gedney UNILETS™ FS-1-100 Type FS-1 Heavy Duty Shallow Device Box With Internal Ground Screw, Iron, 21 cu-in, 1 Gang, 1 Outlet, 6.31 in H x 2.81 in W x 2 in D
Sku #78312620402
MFG #FS-1-100
Attributes
| Type: | Type FS-1 Heavy Duty Shallow |
| Number of Gangs: | 1 |
| Hub Style: | Tapered Threaded |
| Number of Outlets: | 1 |
| Hub Size: | 1 in |
| Enclosure Type: | NEMA FB-1 |
- Threaded Rigid/IMC Conduits and Indoor/Outdoor Applications
- Corrosion-resistant ideal for indoor and outdoor installations
- Weatherproof, raintight and dust tight when used with cast gasketed covers
- FS and FD boxes take standard flush wiring devices
- FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
- Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
- Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- Complete selection of covers, receptacles, plugs, gaskets and accessories
- Covers have captive stainless steel screws to speed installation, prevents loss of screws
- Internal grounding screws standard
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accommodate wiring devices such as switches and receptacles
- Provide excellent service in areas where boxes are subject to rough usage
- Serve as pull boxes for conductors
- Permit access to conductors for maintece
- Provide openings for making splices
- Allow connections for branch conduit runs
- Blank bodies for special conduit entrance arrangements
- Without knockouts
- ARRA Compliant|UL 514A File No. E18095|Federal Specification A-A-50563|CSA C22.2 No.18/009795|NEMA FB-1
- Internal Ground Screw
- Limited
