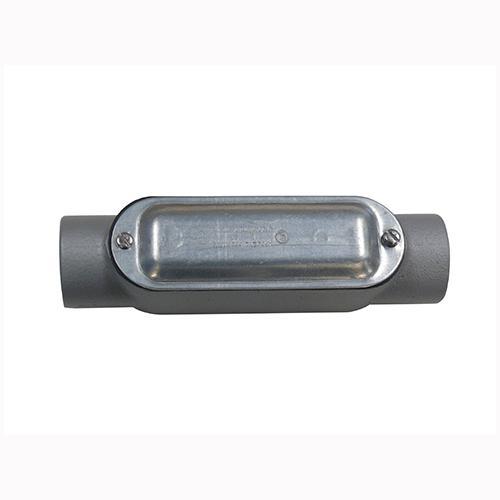

O-Z/Gedney C-100CG Type-C Conduit Outlet Body With Cover and Gasket, 1 in Hub, 12 cu-in Capacity, Malleable Iron, Triple Coated
Sku #78312605870
MFG #C-100CG
Attributes
| Type: | Type-C |
| Number of Hubs: | 2 |
| Enclosure: | NEMA FB-1/FB-2.1 |
| Hub Size: | 1 in |
| Capacity: | 12 cu-in |
| Connection Type: | Tapered FNPT |
- Rigid/IMC Conduit Applications
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 35™ malleable iron UNILETS™ are high tensile strength and ductility
- High corrosion resistance, high impact and shock resistance
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Raintight when an Appleton™ cover and gasket are installed
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
- Malleable iron suitable for use in concrete
- ARRA Compliant|UL 514A File No. E18095|C22.2 No. 18/009795 Certified|Federal Specification A-A-50563|Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)
