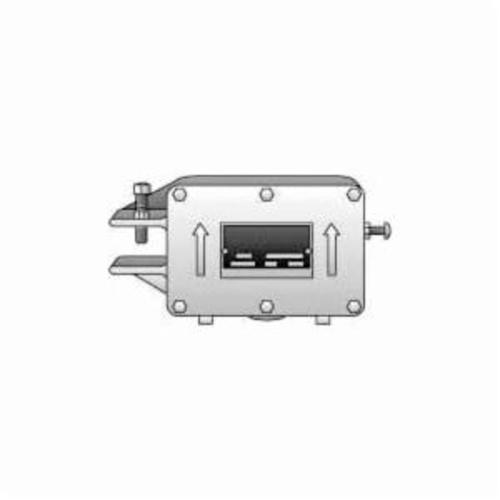

O-Z/Gedney 7AS10C Inertia Switch, For Use With Oil Well Pumping Unit, 1NO/1NC, 8-3/4 in L x 4-3/4 in W x 2-5/8 in H
Sku #78312604757
MFG #7AS10C
Attributes
| Series: | 7A |
| Specifications: | 1NO/1NC |
| Country of Origin: | US |
| Suitable For Use With: | Oil Well Pumping Unit |
| Dimensions: | 8-3/4 in L x 4-3/4 in W x 2-5/8 in H |
- For shut down switch that operates upon sharp impact, disconnects oil well pump engine or motor upon impact occurring from sucker rod breakage
- External adjustment screw varies the impact trip level of the switch
- Correctly adjusted switch prevents tripping on start up and during normal operation, but trips upon malfunction
- Switch should be located at a position subject to maximum shock forces
- Switch should never be installed immediately adjacent to bearing surfaces
- 2-poles
- UL 698|NEMA 7D|Buy American Act Compliant
