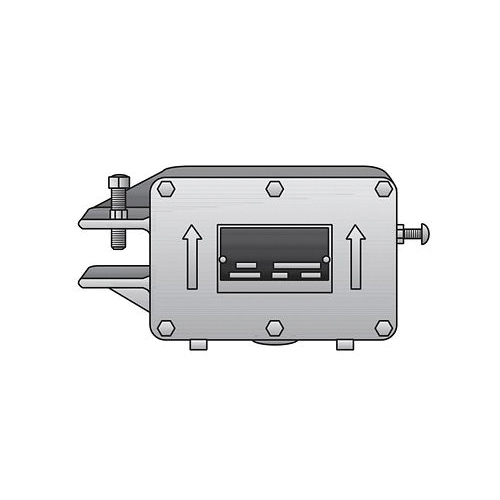

O-Z/Gedney 7ASDP Inertia Unidirectional Pump Engine Switch, 125 V AC/250 V DC
Sku #78312604756
MFG #7ASDP
Attributes
| Type: | Inertia Unidirectional |
| Voltage Rating: | 125 V AC/250 V DC |
| Country of Origin: | US |
| Series: | 7A Series |
| Switch Type: | Snap |
- The inertia switch is a unidirectional shut down device that operates upon sharp impact and provides protection for oil well pumping unit
- When installed properly, the switch will shut down the pump engine or motor upon impact occurring from sucker rod breakage
- An external adjustment screw varies the impact trip level of the switch
- The desired setting should prevent tripping on start up and normal operation, but trip upon malfunction
- The switch should be located at a position subject to maximum shock forces
- It should never be installed immediately adjacent to bearing surfaces
- Oil Well Applications
- Buy American Act Compliant|UL 698|Class I, Division 1, 2, Group D|Class I, Zone 1, 2, Group IIA|Class II, Division 1, 2, Group E, F, G|Class III
