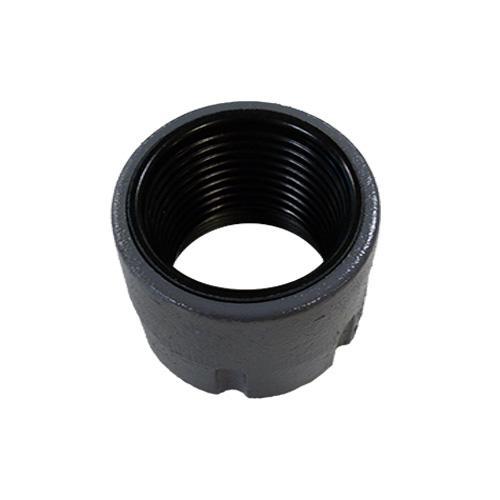

O-Z/Gedney S-4000-BO Type S Cable Support Body Only, 4 in, Ductile/Malleable Iron
Sku #78312602265
MFG #S-4000-BO
Attributes
| Type: | Type S |
| Suitable For Use With: | RMC, IMC and EMT Conduit |
| Finish: | Hot Dipped Galvanized |
| Size: | 4 in |
| Material: | Ductile/Malleable Iron |
| Dimensions: | 5.63 in OD x 3.88 in H |
- For supporting non-armored electrical cables in vertical conduit risers and indoor
- For two or more wires indoors at voltages to 600 VAC
- Use with all types of insulations at voltages to and including 600 V
- The fastest and easiest type cable support to install
- The knurled insulating inner surface and one piece impregnated hardwood pOZi-grip™ plug provide positive support well in excess of code requirements
- If mounting on a non-metallic/non-grounded conduit, a Lay-In-Lug™ grounding lug should be mounted on cable support body
- One-piece plug tapered body
- 18 to 8 AWG, 6 to 1/0 AWG, 2/0 to 4/0 AWG, 4/0 AWG to 750 kcmil (aluminum/copper clad aluminum/copper) conductor
- ANSI/UL 514B|ARRA Compliant|BAA Compliant|CSA C22.2 #18.3/011584|NEC 300-19|UL E-11853|Buy American Act Compliant
