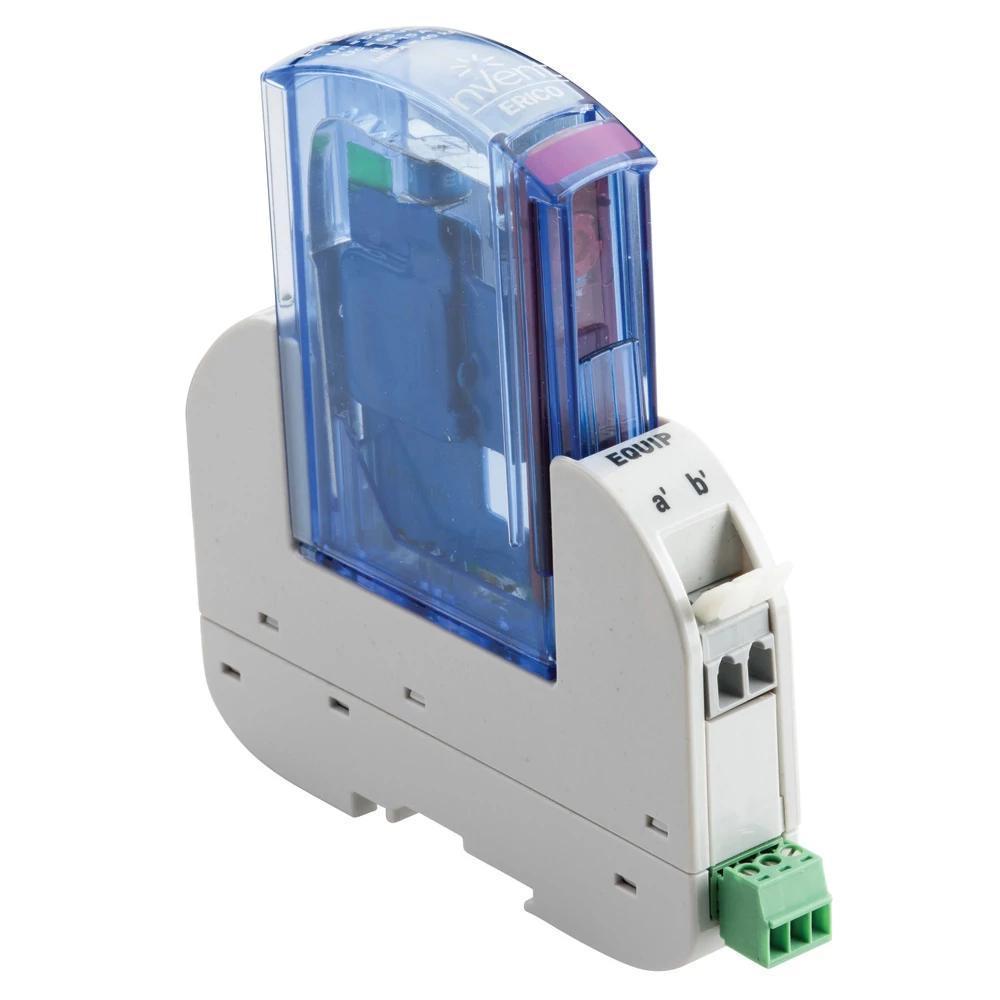

nVent ERICO RTB50N Rail Transient Barrier, 35 V AC, 50 V DC, Thermoplastic
Sku #78285696639
MFG #RTB50N
Attributes
| Electrical Ratings: | 35 V AC, 50 V DC |
| Indicator Type: | Mechanical Flag/Remote Contacts |
| Enclosure Type: | IP20 |
| Modes of Protection: | L-L/L+L-PE |
| Environmental Conditions: | -40 to 185 deg F |
| Mounting Type: | DIN Rail |
- Mechanical flag will protrude to indicate the module needs to be replaced
- Thermal disconnect releases the indicator when the device reaches end of life, disconnecting itself from the circuit to prevent it from becoming a short or shunt
- Surge module attaches to the base with a latching mechanism that easily locks the device into place, preventing the module from disconnecting during service
- Integration of GDT (gas discharge tube) technology and MOV (metal oxide varistors), a combination that delivers consistency and the capability to protect against fast spikes
- DIN rail grounding connection eliminates the need for extra grounding wires
- Screw-less cage clamp terminal allows for easy connection, solid or stranded wires are simply pushed in to lock into place, reducing installation time by as much as 75 Percent
- https://youtu.be://F9lgOgvqZE0
- ANSI/IEEE C62.41.2-2002 Cat A/Cat B/Cat C|AREMA® C&S Manual Parts 11.5.1, 11.3.2|UL 94 V-0 Flammability Rating
