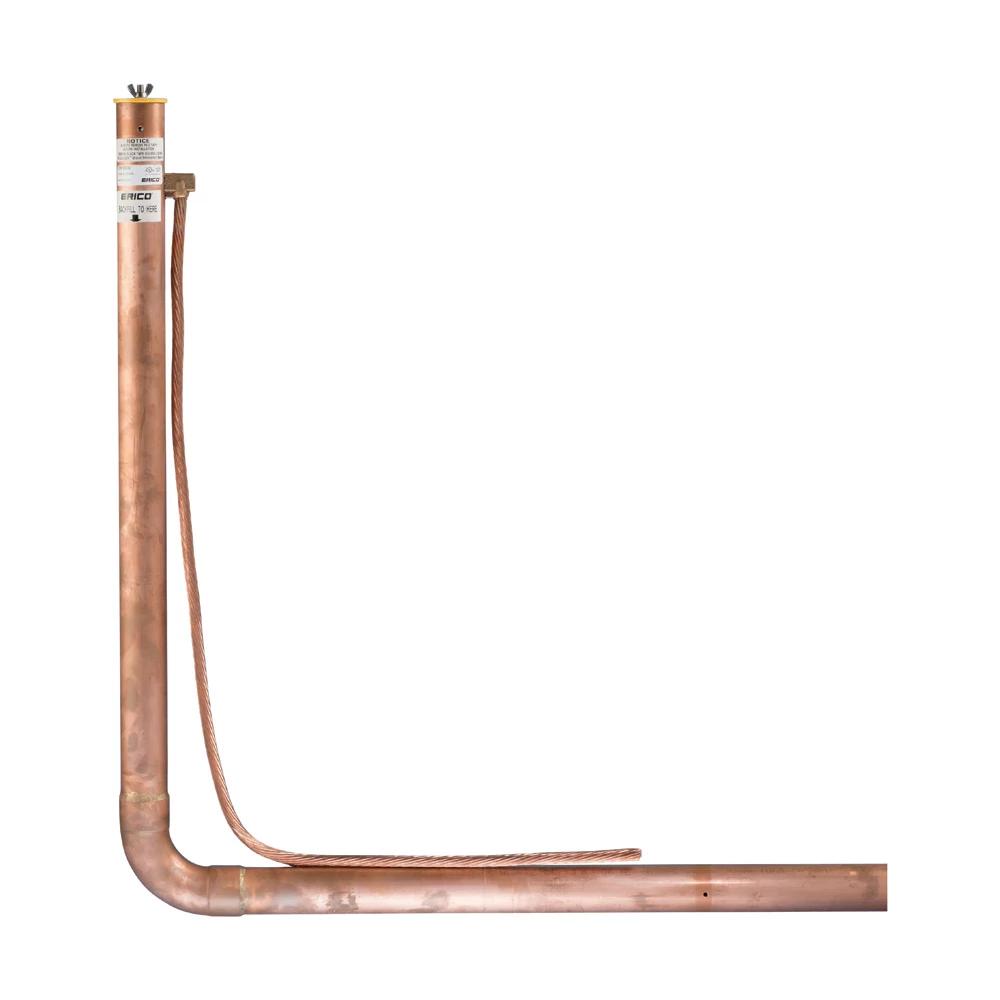

nVent ERICO ECRHE202Q4D Chemical Ground Electrode Kit With 4/0 AWG Stranded 4 ft L Pigtail, 20 ft L x 32 in D, Copper
Sku #78285671183
MFG #ECRHE202Q4D
Attributes
| Size: | 20 ft L x 32 in D |
| Material: | Copper |
| Country of Origin: | US |
| Construction: | Horizontal Extended with Down Pigtail |
| Dimensions: | 2-1/8 in OD |
- Contains natural electrolytic salts, which permeate into the surrounding soil to condition the soil and increase its conductivity
- Easy connection to ground electrode conductor using the factory provided pigtail (up or down orientation)
- Provides decades of reliable services due to rugged construction and high-quality metals with a 30-year minimum service life
- 2-1/8 in (54 mm) outside diameter copper pipe with 0.083 in (2.1 mm) wall
- Available in continuous sections up to 10 (3.05 m) in length, longer rods can be field assembled using 5 (1.52 m) or 10 (3.05 m) extensions
- Optional factory-attached radial strips are available to reduce impedance to high-frequency lightning energy and to control the direction of the dissipation
- Access segment on horizontal (L-shaped) chemical ground electrodes is 32 in (813 mm) deep
- Telecommunications, Power Generation and Distribution, Commercial and Industrial, Manufacturing, Transportation, Lightning Protection, Recreational Facilities and Defense Applications
- GEM, Bentonite and High Density Polyethylene Inspection Well
- cULus Listed
