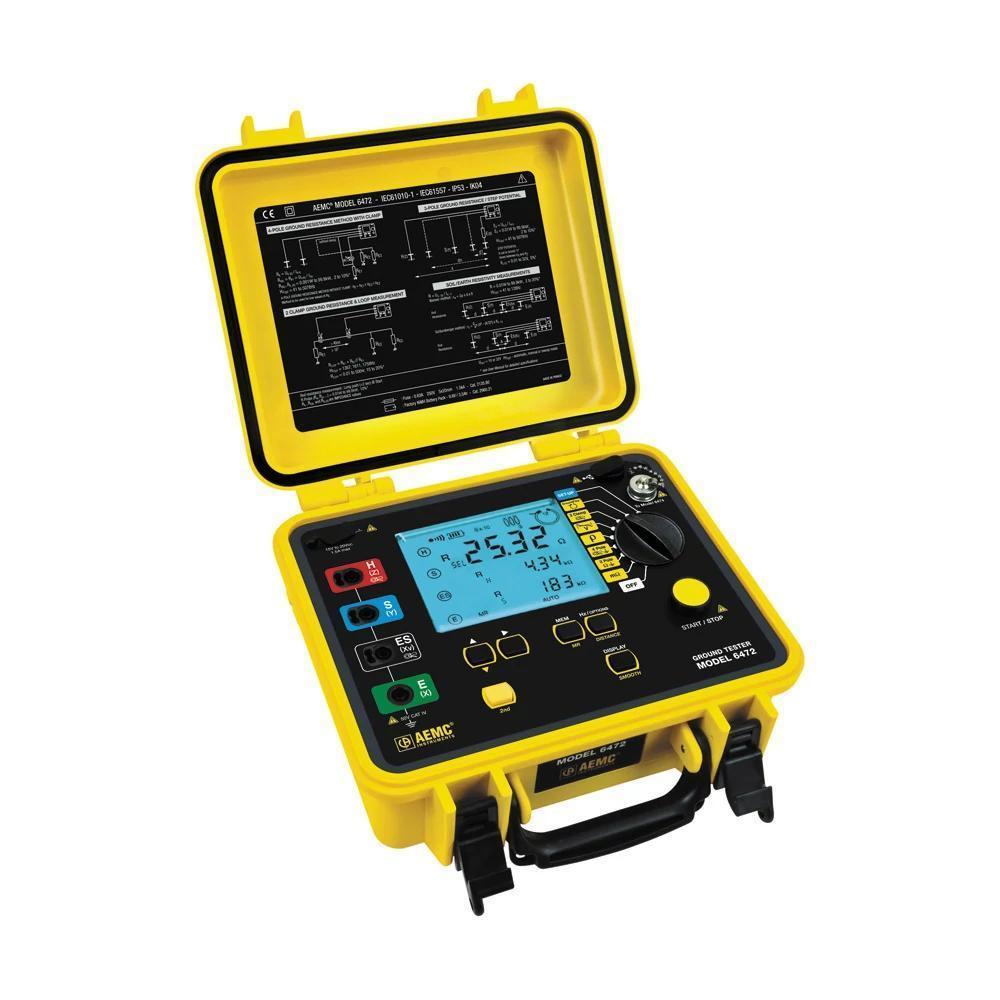

nVent ERICO EST6472 3/4-Point Ground Resistance Tester Kit, 16 to 32 V Earth, 250 mA, 41 to 5078/128 Hz, AC Adapter/9.6 V DC NiMH Rechargeable Battery
Sku #78285663898
MFG #EST6472
Attributes
| Type: | 3/4-Point |
| Amperage Rating: | 250 mA |
| Resistance Range: | 0.09 Ohm to 99.9 kOhm/0.1 to 500 Ohm |
| Earth Voltage: | 16 to 32 V |
| Frequency Rating: | 41 to 5078/128 Hz |
| Accuracy: | +/-2% Reading + 1ct |
- Measures Ground Impedance at frequencies up to 5kHz to test lightning strike protection
- Ground Resistance testing using the 2 clamp method (no auxiliary rods needed) using optional current probes
- Used under difficult conditions such as the presence of high-stray currents that normally affect accuracy
- Automatic report generation including the fall of potential plot
- 4-Point soil resistivity measurement with automatic calculation of Rho and user selection of Wenner or Schlumberger test method
- Manual and automatic frequency scan from 41 to 5,078Hz for optimum test accuracy in electrically-noisy environments
- Selectable test voltage of 16 or 32V up to 250mA of test current
- (1) 9.6 VDC Rechargeable Battery Pack, (1) DataView® Software For Data Storage, (1) Real-Time Display, (1) Analysis, Report Generation, (1) System Configuration, (2) 300 ft Color Coded Leads on Spools (Red and Blue), (2) 5 ft Color Coded Leads (Red and Blue), (2) 100 ft Color Coded Leads (Green and Black), (4) 14-1/2 in T-Shaped Auxiliary Ground Electrodes, (2) 5-Spaded Lugs, (1) 100 ft Tape Measure, (1) Carrying Bag and Optically Isolated USB Communication
- CE Certified|Qualifoudre Approved|NOM Certified|RoHS Compliant
