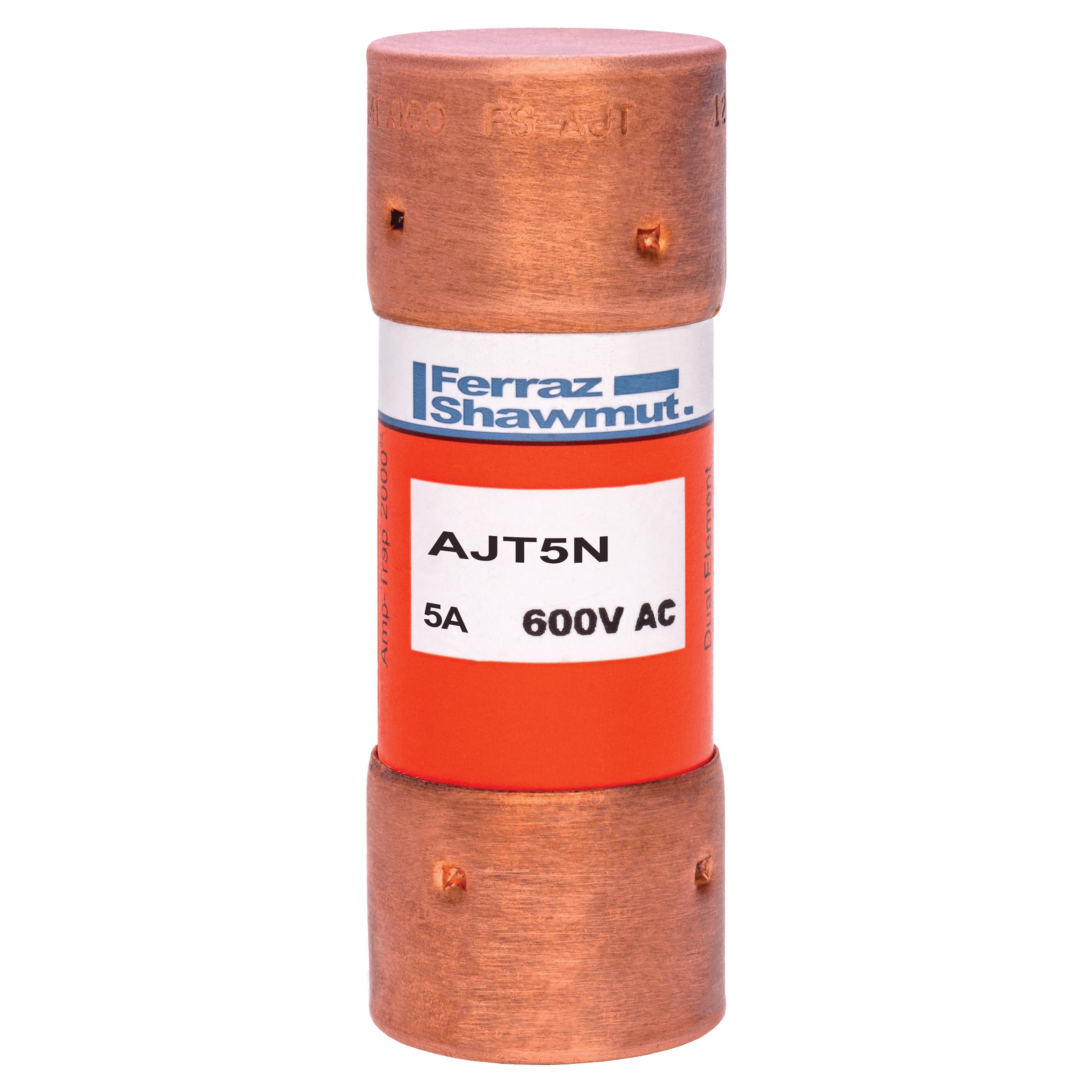

Mersen AJT5N Time Delay Fuse, 5 A, 600 V AC/500 V DC, 100 kA at 500 VDC, 200 kA at 600 VAC Interrupt, J Class
Sku #78200149810
MFG #AJT5N
Attributes
| Series: | AJT |
| Rejection/Non-Rejection: | Non-Rejection |
| Voltage Rating: | 600 V AC/500 V DC |
| Indicating/Non-Indicating: | Non-Indicating |
| Amperage Rating: | 5 A |
| Interrupt Rating: | 100 kA at 500 VDC, 200 kA at 600 VAC |
- Non-indicating or solid state smartspot visual blown fuse indicator
- Time delay for motor starting and transformer inrush
- 300 kA interrupting rating self certified, UL witnessed tests
- Extremely current limiting for low peak let thru current
- Non-indicating fuses suitable for use in NEC class I division 2 hazardous locations
- Recommended for arc flash energy reduction
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2 to 1 selectivity for prevention of nuisance shutdowns
- Unique class J dimensions prevent replacement errors
- High visibility orange label gives instant brand recognition
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh environments
- High-grade silica filler ensures fast arc quenching
- Motor Circuit, Main, Feeder, Branch Circuit, Lighting, Heating and General Load, Transformer, Control Panel, Circuit Breaker Back Up, Bus Duct and Load Center Applications
- CSA Certified|IEC 60269-2-1|RoHS Compliant|UL 248-7 File No. E2137
