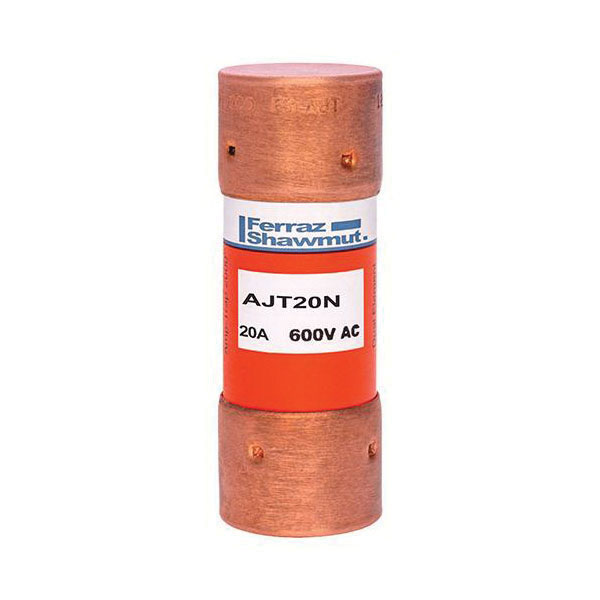

Mersen Amp-Trap 2000® AJT20N Low Voltage Time Delay Power Fuse, 20 A, 600 V AC/500 V DC, 200 kA AC/100 kA DC Interrupt, J Class
Sku #78200149771
MFG #AJT20N
Attributes
| Type: | Low Voltage Time Delay |
| Indicating/Non-Indicating: | Non-Indicating |
| Amperage Rating: | 20 A |
| Series: | AJT |
| Rejection/Non-Rejection: | Non-Rejection |
| Voltage Rating: | 600 V AC/500 V DC |
- Non-indicating or solid state SmartSpot® visual blown fuse indicator
- Time delay for motor starting and transformer inrush
- 300 kA interrupting rating - self-certified, UL witnessed tests
- Extremely current limiting for low peak let-thru current
- Non-indicating fuses suitable for use in NEC class I division 2 hazardous locations
- Recommended for Arc Flash energy reduction
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns
- Unique Class J dimensions prevent replacement errors
- High-visibility orange label gives instant brand recognition
- Metal-embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High-grade silica filler ensures fast arc quenching
- Silver-plated copper terminal
- Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heating and General Loads, Transformers, Control Panels, Circuit Breaker Back-Up, Bus Duct and Load Centers
- IEC 60269-2-1|CSA C22.2 No. 248.8|CSA Class 1422-02 Guide 012636|DC Listed to UL 248|RoHS Compliant|UL 248-8 File No. E2137
