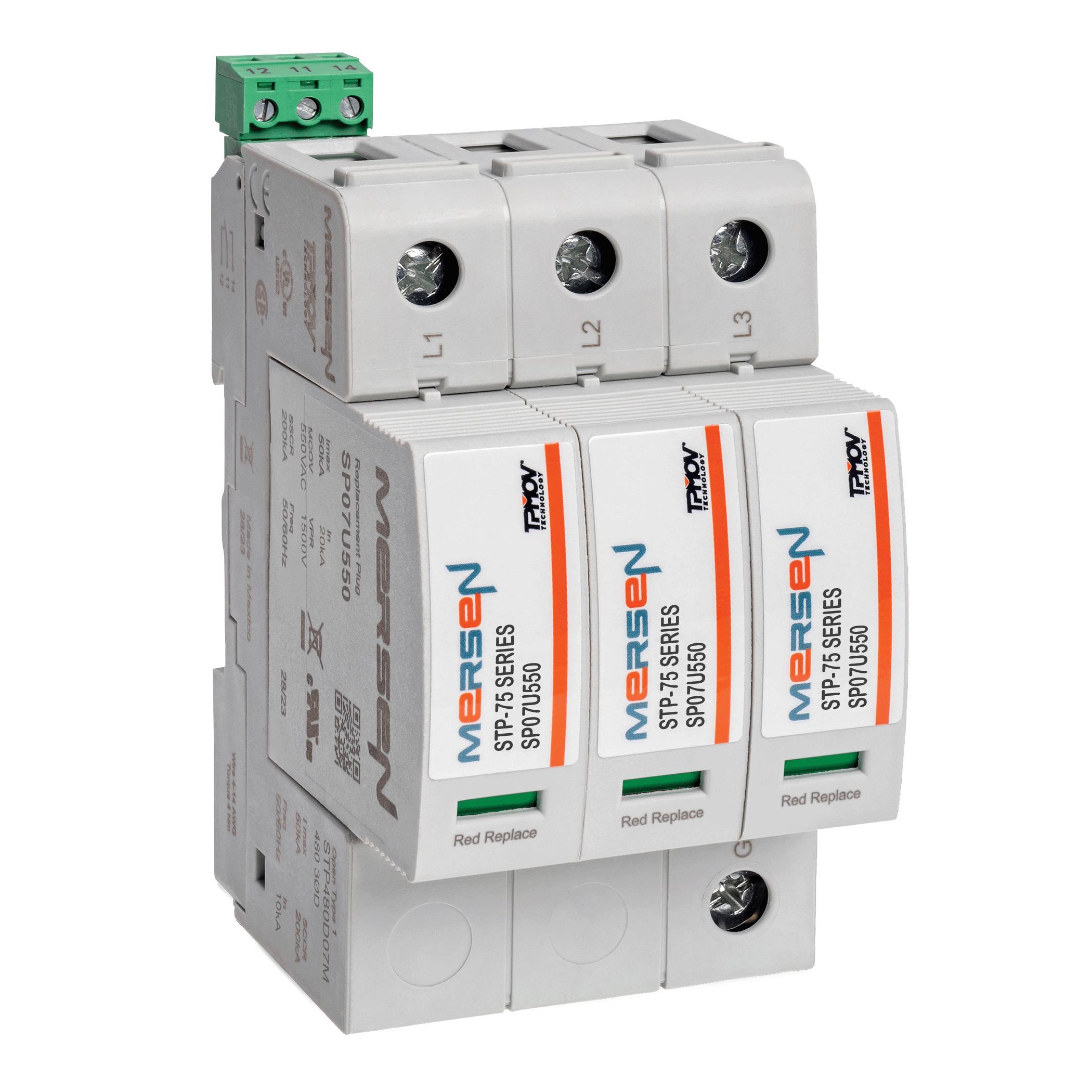

Mersen STP480D07M STP Type 1 Pluggable AC Surge Protective Device, Electrical Ratings: 480 V AC, 50, 60 Hz, 3 Poles, 200 kA Short Circuit, 3 Phase
Sku #78200147779
MFG #STP480D07M
Attributes
| Type: | Type 1 |
| Electrical Ratings: | 480 V AC |
| Number of Poles: | 3 |
| Series: | STP |
| Frequency Rating: | 50, 60 Hz |
| Number of Wires: | 2 |
- Featuring a fail-safe self-protected design, visual indicator and a small footprint
- A remote indicator option provides status to critical control circuitry
- The Surge-Trap Pluggable SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices
- Easy installation or retrofit
- Visual indicator
- Small footprint
- No additional overcurrent protection devices required
- Easy to replace modules
- Used for control panels, factory automation installation, programmable logic controllers, and other industrial applications
- Audible Alarm, Form C Dry Contact
- ANSI/UL 1449 4th Edition, Type 1 Component Assembly SPD, File E210793|ANSI/IEEE C62.41.1, C62.41.2, C62.45|RoHS Compliant
- 2 Years
